30L 500Watt Mechanical Ultrasonic Cleaner For Marine Engine Parts
Why You Need Whale Cleen sonic Mechanical Ultrasonic Cleaner For Marine Engine Parts?
Disassembling and inspecting shipboard propulsion systems during
scheduled maintenance procedures provides an excellent opportunity
to sonic clean marine engine parts. Ultrasonic cleaning is
doubtlessly faster and more thorough than using aerosol sprays or
manually scrubbing marine diesel and gasoline engine parts in wash
tanks using potentially harmful solvents with their associated
disposal challenges.
The thoroughness of ultrasound is due to its ability to reach all
surfaces of marine engine parts immersed in a water-based
biodegradable ultrasonic cleaning solution. The process occurs when
millions of minute bubbles created by generator powered ultrasonic
transducers violently implode on contact with parts to dislodge and
carry away grease, varnishes, carbon deposits and other
contaminants that decrease engine performance and contribute to
wear.
Specification:
Model | z-10 |
Ultrasonic Frequency | 40,000 Hz |
Tank Material | Stainless Steel SUS304 |
Tank Capacity | 30 L |
Timer | 1-30minutes ,Digital timer |
Power Supply | AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz |
Ultrasonic Power | 500W |
Heating Power | 600 W , Digital Heating |
Unit Size | 530x325x325 mm ( L x W x H ) |
Tank Size | 500x300x200 mm ( L x W x H ) |
Package Size | 635x405x390 mm ( L x W x H ) |
N.W. | 14 kg |
G.W. | 15.6 kg |
Specification Of Related Model:
If this model is not suitable for you, please check other in below
chart.
Model | Tank size | Unit size | Volume | Actual ultrasonic power | Rated ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
LxWxH(mm) | LxWxH(mm) | (L) | (W) | (W) | (kHz) | (W) | (MIN) | (℃) |
z-008 | 150x85x65 | 175x110x125 | 0.8 | 30 | 30 | 40 | no | 1-30 | no |
z-01 | 150x135×100 | 175x160x210 | 2 | 50 | 60 | 40 | 150 | 1-30 | 0-80 |
z-02 | 240x135x100 | 265x165x220 | 3.2 | 100 | 120 | 150 |
z-03 | 300x150x100 | 325x180x225 | 4.5 | 150 | 180 | 300 |
z-031 | 300x150x150 | 325x180x280 | 6.5 | 150 | 180 | 300 |
z-04 | 300x240x150 | 325x265x280 | 10.8 | 200 | 240 | 450 |
z-06 | 330x300x150 | 360x325x285 | 15 | 300 | 360 | 450 |
z-08 | 500x300x150 | 530x325×285 | 22 | 400 | 480 | 600 |
z-10 | 500x300x200 | 530x325x325 | 30 | 500 | 600 | 600 |

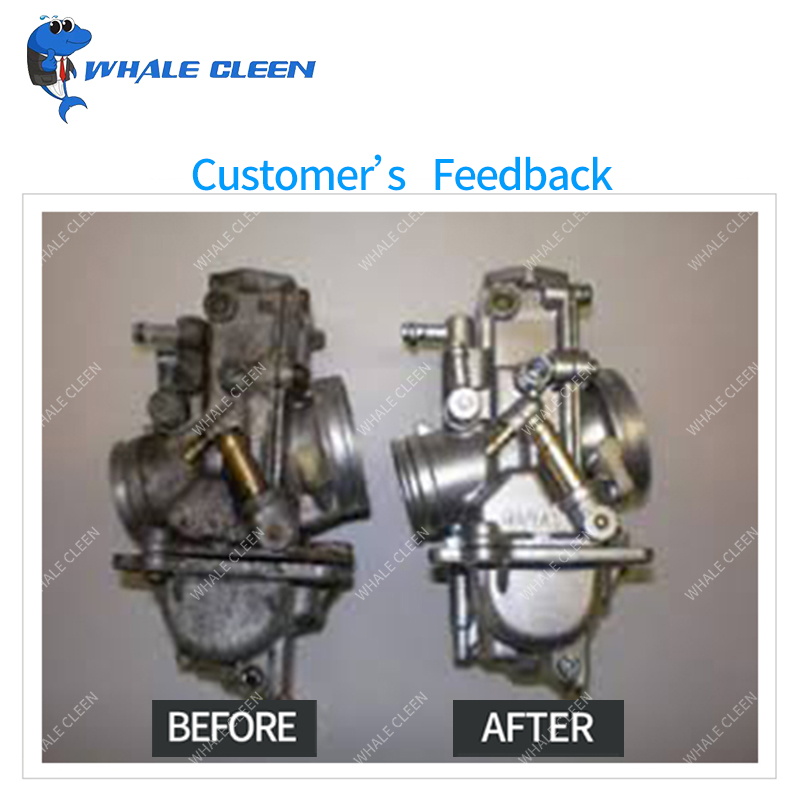

Cleaning Effect:
What Engine Parts Can Be Cleaned?
The marine sector finds in our ultrasonic cleaning equipment the
most suitable option for the maintenance and repair of all types of engines. This is so because ultrasonic cleaning facilitates the cleaning
of parts such as heat interchangers, cylinder heads, turbochargers, intercoolers, tube bundles,
coolers or propellers and other large and heavy parts; thereby
reducing the time and effort involved in the traditional systems.
Features and Advantages
• Powerful & more efficient cleaning
• All areas are Easily Accessed for better dirt removal
• Stainless steel Enclosure Provides Ease of operation while
Eliminating Potential Corrosion
• Inbuilt Digital Timer & Digital Temperature Controller for heater
• Dry run protection provided for safety of the equipment.
• Removal of all contaminants including dirt, soot, carbon etc.
down to a microscopic particle size
• Extends life of intervals between scheduled maintenance cleaning
sessions
• Clean marine engine parts in a safer and faster way.
