Brand Name : | Whale cleen |
Model Number : | Z-04 |
Certification : | CE, Roth |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 20000 Units Per Month |
Delivery Time : | Depend On Quantity |
10L 200W Mechanical Ultrasonic Cleaner For Musical Instrument With
Heater
How Whale Cleen sonic Mechanical Ultrasonic Cleaner Works?
Whale Cleen sonic supplies ultrasonic cleaning equipment in both standard units
for small scale operations and custom configured large scale units
for inline operations and stand alone high volume production.
Ultrasonic cleaning is a process that uses ultrasound (usually from
20–400 kHz) and an appropriate cleaning solvent to clean items from
any oils, greases and other manufacturing residue. The ultrasound
is used with an appropriate solvent for the item to be cleaned and
the type of soiling present. Cleaning normally lasts between three
and six minutes, but can also exceed 20 minutes, depending on the
object to be cleaned.
Specification Of z-04:
Model | z-04 |
Ultrasonic Frequency | 40,000 Hz |
Tank Material | SUS304 |
Tank Capacity | 10 L |
Timer | 1-30minutes ,Mechanical timer |
Power Supply | AC 100 ~ 120V, 50 / 60Hz AC 220 ~ 240V, 50 / 60 Hz |
Ultrasonic Power | 200W |
Heating Power | 450 W , Mechanical Heating |
Unit Size | 325x265x280 mm ( L x W x H ) |
Tank Size | 300x240x150 mm ( L x W x H ) |
Package Size | 435x360x350 mm ( L x W x H ) |
N.W. | 7.4 kg |
G.W. | 8.5 kg |
Specification Of Related Model:
If this model is not suitable for you, please check other in below
chart.
Model | Tank size | Unit size | Volume | Actual ultrasonic power | Rated ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
LxWxH(mm) | LxWxH(mm) | (L) | (W) | (W) | (kHz) | (W) | (MIN) | (℃) | |
z-02 | 240x135x100 | 265x165x220 | 3.2 | 100 | 120 | 40 | 150 | 1-30 | 0-80 |
z-03 | 300x150x100 | 325x180x225 | 4.5 | 150 | 180 | 300 | |||
z-031 | 300x150x150 | 325x180x280 | 6.5 | 150 | 180 | 300 | |||
z-04 | 300x240x150 | 325x265x280 | 10.8 | 200 | 240 | 450 | |||
z-06 | 330x300x150 | 360x325x285 | 15 | 300 | 360 | 450 | |||
z-08 | 500x300x150 | 530x325×285 | 22 | 400 | 480 | 600 | |||
z-10 | 500x300x200 | 530x325x325 | 30 | 500 | 600 | 600 |

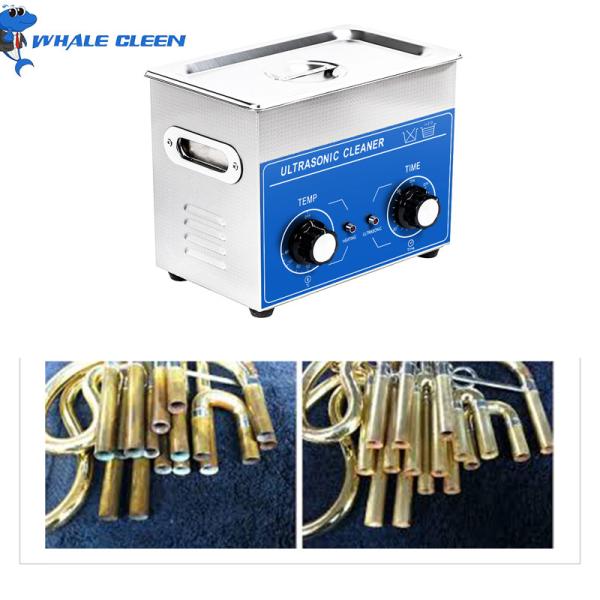

Customer's Cleaning Feedback:
How To Clean Musical Instrument With Mechanical Ultrasonic Cleaner?
Most instruments that are brass will need to be inspected to
determine if lacquer is already starting to peel off. The older the
instrument is, the more likely you will see this. If it is peeling,
temperature and intensity need to be kept low to avoid further
damage. For other metal instruments, the temperature of cleaning
should usually remain at room temperature.Before cleaning,
instruments should be disassembled as much as possible. Remove all
slides and buttons. If you find these parts are stuck, go ahead and
clean the whole instrument in the machine for a minute, pull it
out, and see if you can then loosen these parts enough to
disassemble them. Then place all parts back in the machine for
another 2-3 minutes. Note that you do not have to remove the felt
or leather pads prior to cleaning, but if these need replacing,
it’s best to go ahead and remove them at this time.Clean in stages: Pre-wash, Ultrasonic Wash, Rinse and Dry
For best results, pre-wash your instruments in a high alkaline
cleaning solution. This will remove oil, dirt and other build up.
For the Ultrasonic Wash, you should use an acidic, descaling
solution to work on the build up (from saliva) frequently seen on
brass instruments.
![]() |
