6.5L 150 Watt Ultrasonic Cleaner Electronics For Soldering PCB
Board
Why You Need Whale Cleen sonic Ultrasonic Cleaner Electronics For
PCB Board?
Ultrasonic cleaners have proved highly effective in cleaning PCBs,
and the process is far superior to manual processes that involve
soaking and scrubbing using high purity alcohol, flux removal
sprays, and biodegradable solvents. By contrast, these
time-consuming manual processes risk damaging delicate components
and frequently fail to completely remove contaminants. This article
explains why requiring ultrasonic cleaning can be an important
factor when evaluating PCB suppliers. It describes elements that
contribute to properly employed procedures and presents questions
to ask regarding equipment, cleaning solution chemistries, and the
care and maintenance of equipment.
Data Sheet Of Z-S031:
| Model | Z-S031 |
| Tank Material | Stainless Steel 304 |
| Package | Carton Box |
| Tank size | 300x150x150mm |
| Unit size | 325x180x280mm |
| Carton packing Size | 410x255x355mm |
| Ultrasonic power range | 150W |
| timer | 0~30min Can Be Selected |
| Frequency | 40,000Hz |
| Tank capacity | 6.5L |
| pcs/carton | 1PCS/carton |
| N.W. | 5.5 kg |
| G.W. | 6.4 kg |
| Warranty | 1 year |
| Certificate | CE
|

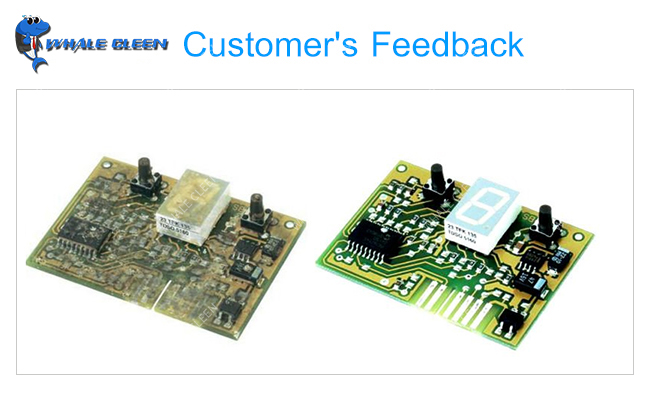

Customer Cleaning Feedback:
How It Works?
Ultrasonic cleaner for circuit boards and the technology works on
the rule of cavitation that occurs when small microscopic bubbles
formed, falls violently on the cleaning surface. Consistent
creation and falling in of the bubbles work as a scrubbing agent,
which in turn cleans the product.
Majority of the people have the wrong credence that the PCBs should
not be immersed in fluid; however it is not right.
For effective cleaning results, PCB or electronic part (to-be
cleaned) should be immersed in the tank filled with cleaning
solution. Later these should be cleaned in proper chemical cleaner
with water and dried up appropriately for safer outcomes.
The ultrasonic parts cleaner machine operates at the frequency of
20-400 Khz allowing safe cavitation cleaning action that reaches
all parts of the surface for cleaning the PCB.
The overall process hardly takes 10-15 minutes and saves your lot
of time and money since you can own this machine at a very
affordable price online.
Furthermore, one can rest assure about the protection of their
electronic parts as most of the units are provided with “auto
sweep” function that eliminates any potential damaging that other
way could be possible.
You can also use the cleaner to clear PCBS after wave bonding, so
you can easily begin after the bonding procedure. However, ensure
that you permit the boards to cool less than 70 degree before
beginning the cleaning process.
Recommendation:
Ultrasonic cleaners such as the Whale Cleen sonic Digital series
are ideal for cleaning and restoring these electronic components.
Bench and tabletop Elmasonic units are offered in tank capacities
up to 30L of cleaning solution for use in electronics parts and
service stores. The D series operates at an ultrasonic frequency of
40 kHz (40,000 cycles per second) providing safe cavitation
cleaning action that reaches all PCB and equipment housing
surfaces.
For larger operations such as PCB manufacturing facilities,
industrial-sized floor models equipped with PCB racks to hold
multiple boards are available from Whale Cleen sonic.
