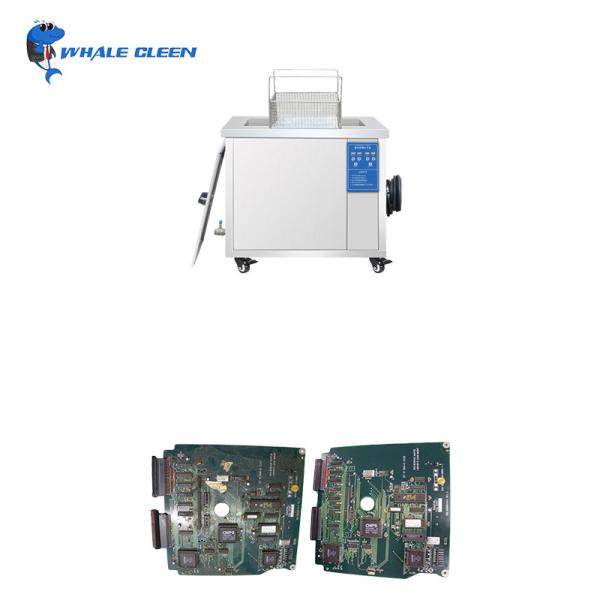

53L Ultrasonic PCB Cleaner Econimical Size With 1.5KW Heating Power
Why You Need Whale Cleen sonic Ultrasonic PCB Cleaner? Company
Overview And Catalog Of Blue Whale and Jie...
Thorough ultrasonic cleaning of electronics plays a crucial role in
assuring reliability of the finished product.Flux removal from
assembled and reworked PCBs as well as solder paste removal from
misprinted PCBs are critical process steps. An ultrasonic circuit
board cleaner removes flux, even tenacious residues from lead-free
and low-residue fluxes, from printed circuit boards with either
through-hole technology or surface-mount components. Ultrasonic
cleaning of electrical components offers clear advantages over
spray washing when the components have tight clearances or tubular
geometries.
Specification:
| Model | Z-X18 |
| Tank Capacity | 53Liter |
| Tank Size | 500*350*350mm |
| Unit Size | 640*490*570mm |
| Packing Size | 810*620*910mm |
| Frequency | 40KHz |
| Ultrasonic Power | 900W |
| Heating Power | 1500W |
| Cleaning Time Setting | 1-99H Adjustable |
| Temperature Range | 20-95C Adjustable |
Customer's Feedback:
How It Works:
Ultrasonic cleaners are used in a wide range of applications to
remove virtually any soil or contamination by using the power of
cavitation action. This is the term used to describe the implosion
of billions of minute bubbles contacting iPad PCB components and
surfaces. The bubbles are created by generator-powered ultrasonic
transducers bonded to an ultrasonic cleaning tank and typically
operate at an ultrasonic frequency of 37 to 42 kHz (37,000 to
42,000 cycles per second).
When the bubbles implode contaminants are quickly and safely
removed from PCB surfaces without damaging delicate parts. So tiny
are the bubbles that they penetrate minute cracks, crevices and
blind holes that might lodge dried residue, dust and dirt
particles. The ultrasonic PCB cleaning system will complete the job
in as little as 10 to 15 minutes. And it will do it in an
environmentally friendly manner because the ultrasonic circuit
board cleaning solution formula is a biodegradable concentrate that
minimizes disposal problems.
Do Not Worry About Those Solder Joints
It might seem that the vibration that is used in ultrasonics might
damage the very delicate solder joints that are present in
electronics. Fortunately, that is not how ultrasonics clean.
Ultrasonic cleaners work by creating small bubbles that appear and
collapse over and over again. This process is called cavitation.
Since the bubbles are what are doing the cleaning, the solder
joints are safe.
A chemical used during soldering, called flux, is cleaned off of
motherboards by ultrasonics at their manufacturers.
The Things You Should Be Careful:
The solvent must be nonflammable. DO NOT USE FLAMMABLE SOLVENTS IN
ULTRASONIC CLEANERS due to the risk of fire.
It should be ozone-safe and environmentally benign;
It must have manageable toxicity ratings;
Unless your cleaning system has refrigeration, the solvent must
have a higher boiling point, usually between roughly 100 degree C
or higher;
The component chemistries should not separate when heated (which is
called "azeotropic" behavior in the chemical world),
The chemistry should not foam when agitated, and...
It should be recyclable and disposable using standard industrial
processes.
