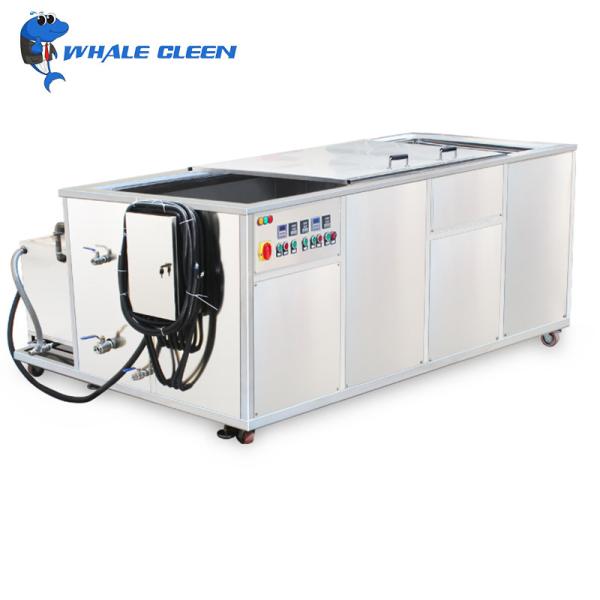

Stainless Steel Ultrasonic Cleaner Three Tanks 135L Each Cleaning
Machine for Metal Parts to Remove Grease Dust
1. Product Features:
1), Drying trough: self-regulation, time and temperature, with
drying to complete the alarm notice function;
2), Inner liner material: using 304 stainless steel, thickened to
2mm, manual argon welding, solid and durable;
3), Time Adjustable: 1-99 minutes/hour adjustable, often open;
4), Industrial-grade transducer: industrial head, strong effect, 24
hours uninterrupted work;
5), Filter circulation function: circulation is advantageous to the
solvent, saves the cost, the cleaning effect is good;
6), The generator control system: independent generator control
system, the control is flexible, can be set according to the user
cleaning needs to adjust the ultrasonic power;
7), Heating automatic thermostatic system: from room temperature to
95 degrees adjustable, with stainless steel heating pipe, heating
speed;
8), Equipment power line: industrial roughing power line, safe and
durable;
9), Memory function: the device has independent memory chip, no
need to reset after time setting.
2. Product Details:
Blue Whale three-slot type with filter rinsing and drying
ultrasonic cleaning machine, is the first tank ultrasonic cleaning
and filtration cycle, the cleaning of the oil slick, impurities,
dust filtered out; the second tank is the rinsing tank, after the
cleaning of the first tank, and then washed in the rinsing tank, so
that the cleaning material is cleaner; the third tank is the hot
air drying tank, after the cleaning of the first two tanks, the
three tanks of air drying, so that the cleaning material can be
dried quickly. Three-slot type with filter rinsing and drying
ultrasonic cleaning machine, mainly for the cleaning needs of
workpieces that need to be cleaned after dust, oil, rust, wax, glue
and other dirt, and need to be quickly dried.
3. Specification of LanJ-J336X and Other Related Models, we also can customize the products as per
your requirements.
| Three Slots Ultrasonic Cleaning+Filtering+Drying+Recycling+Rinsing |
| Product Model | Overflow Port | First Slot Filtration | Second Tank Rinse | Hot Air Circulation Drying | Inner Tank Size(mm) | Capacity(L) | Transducer
Qty | Ultrasonic Power(adjustable) | Time Control | Heating Power | Low Level Protection | Generator Rack |
| LanJ-J312X1 | Standard | Standard | Standard | Standard | 500*300*250mm | 38L | 12pcs | 0-600W | 1-99H | 1.5KW | Standard | Standard |
| LanJ-J312X2 | Standard | Standard | Standard | Standard | 500*300*300mm | 45L | 12pcs | 0-600W | 1-99H | 1.5KW | Standard | Standard |
| LanJ-J318X1 | Standard | Standard | Standard | Standard | 500*350*300mm | 53L | 18pcs | 0-900W | 1-99H | 1.5KW | Standard | Standard |
| LanJ-J318X2 | Standard | Standard | Standard | Standard | 500*350*350mm | 61L | 18pcs | 0-900W | 1-99H | 1.5KW | Standard | Standard |
| LanJ-J324X1 | Standard | Standard | Standard | Standard | 550*400*350mm | 77L | 24pcs | 0-1200W | 1-99H | 3KW | Standard | Standard |
| LanJ-J324X2 | Standard | Standard | Standard | Standard | 550*400*400mm | 88L | 24pcs | 0-1200W | 1-99H | 3KW | Standard | Standard |
| LanJ-J330X1 | Standard | Standard | Standard | Standard | 550*450*400mm | 99L | 30pcs | 0-1500W | 1-99H | 3KW | Standard | Standard |
| LanJ-J330X2 | Standard | Standard | Standard | Standard | 600*450*400mm | 108L | 30pcs | 0-1500W | 1-99H | 3KW | Standard | Standard |
| LanJ-J330X3 | Standard | Standard | Standard | Standard | 800*300*400mm | 96L | 30pcs | 0-1500W | 1-99H | 3KW | Standard | Standard |
| LanJ-J336X | Standard | Standard | Standard | Standard | 600*500*450mm | 135L | 36pcs | 0-1800W | 1-99H | 4.5KW | Standard | Standard |
| LanJ-J348X1 | Standard | Standard | Standard | Standard | 700*500*500mm | 175L | 48pcs | 0-2400W | 1-99H | 6KW | Standard | Standard |
| LanJ-J348X2 | Standard | Standard | Standard | Standard | 700*550*500mm | 192L | 48pcs | 0-2400W | 1-99H | 6KW | Standard | Standard |
| LanJ-J360X | Standard | Standard | Standard | Standard | 800*600*550mm | 264L | 60pcs | 0-3000W | 1-99H | 6KW | Standard | Standard |
| LanJ-J372X | Standard | Standard | Standard | Standard | 1000*600*600mm | 360L | 72pcs | 0-3600W | 1-99H | 9KW | Standard | Standard |
| LanJ-J390X | Standard | Standard | Standard | Standard | 1000*800*700mm | 560L | 90pcs | 0-4500W | 1-99H | 18KW | Standard | Standard |
| LanJ-J3108X | Standard | Standard | Standard | Standard | 1000*900*600mm | 540L | 108pcs | 0-5400W | 1-99H | 18KW | Standard | Standard |
| LanJ-J3144X | Standard | Standard | Standard | Standard | 1200*1000*800mm | 960L | 1144pcs | 0-7200W | 1-99H | 24KW | Standard | Standard |
4. Application:
5. Cleaning Effect:
6. Our Factory
Guangdong Blue Whale Ultrasonic Cleaning Technology Co., Ltd. and
Guangdong Jietai Ultrasonic Cleaning Equipment Co. Ltd. are founded
in 2003 and located in Dongguan City, Guangdong Province.
We have our own factory buildings including several floors of
production sites and offices, we have experienced engineers,
R&D team, QA team and sales team with a total around 300
workers.
We have focused on the R&D, manufacturing and sales of
ultrasonic cleaning equipment. Over the past 20 years, our products
have covered laboratory, medical, industrial engineering and
household filed, which are widely used in the lab of schools and
companies, surface coating treatment, mechanical engineering,
acoustic, electronics, photoelectric, ignition detonated, medical
treatment, semiconductor, watch, jewelry, PCB board, glasses, etc.,
and favored by customers.
With the strict impletation of ISO90001:2008 Quality Management
System, our products have passed CE, FCC, ROHS and some other
national and international certificates. We have got more than 50
patents. Innovation and customer-oriented are our most important
corporate culture.
We welcome customers to ODM, OEM, wholesale and customize. Welcome
to visit our factory.
