Ultrasonic Cleaning Machine Two Tanks Adjustable Ultrasonic Power
Gas Phase Refrigeration 264L 360L 560L 540L
1. Specification of LanJ-C260 and other related products:
Model# | Overflow Port | Material | Filtering Function | Inner Tank Size(mm) | Capacity(L) | Transducers | Ultrasonic Power(adjustable) | Heating Power |
LanJ-C260 | Standard | SUS304 or SUS316 | Standard | 800*600*550 | 264L | 60pcs | 0-3000W | 6KW |
LanJ-C272 | Standard | SUS304 or SUS316 | Standard | 1000*600*600 | 360L | 72pcs | 0-3600W | 9KW |
LanJ-C290 | Standard | SUS304 or SUS316 | Standard | 1000*800*700 | 560L | 90pcs | 0-4500W | 18KW |
LanJ-C2108 | Standard | SUS304 or SUS316 | Standard | 1000*900*600 | 540L | 108pcs | 0-5400W | 18KW |
2. Product Details:
Blue Whale gas cooled ultrasonic cleaner, the cleaning machine is
mainly composed of ultrasonic generator, transducer, coarse washing
tank, distillation recovery tank, circulation filter system,
automatic temperature control heating system, oil-water separator,
refrigeration system, frame, control panel and control system.
A blue whale gas-cooled ultrasonic cleaning machine, in which the
workpiece to be cleaned is placed in a specific cleaning basket and
transported to an ultrasonic cleaning tank containing organic
solvents, in the cleaning tank through a strong ultrasonic
cavitation, so that the workpiece to ve cleaned in a short time to
clean (according to the requirements of product cleaning,
appropriate increase this process to ensure that the cleaning
cleanliness to a certain standard); The workpiece is then placed in
the steam area of the cleaning machine. When the workpiece touches
the steam, condensation is produced on the surface of the workpiece
and interacts with the dirt on the surface of the workpiece, the
workpiece is then moved to the upper frozen area and freeze-dried.
3. Product Features:
1). The first tank is with ultrasonic cleaning with cooling system,
the second tank is with ultrasonic rinsing system to provide
precise cleaning in short time.
2). The whole machine structure: using high quality SUS304/316
plate stainless steel welding composition. The welding is firm and
strong, no water leakage, the welding surface is polished
3). Transducer: imported piezoelectric ceramic chip, can adapt to
different temperatures for a long time work; imported bonding
technology to ensure that the transducer will not fall off after
long service time.
4). Ultrasonic generator: adopt the international leading
technology, adopt LGBT module, SCM technology, stable working
condition, bigger and stronger output power, have over-voltage,
over-current, output short circuit and other protective measures.
5). Electrical system: the use of PLC Human Interface Touch control
technology, all levels of independent circuit, can be independently
controlled by varous parameters of the slot.
6). Freezing system: adopt two-stage freezing system, the first
layer is the freezing zone, connected with the freezing system.
Another layer for the cold water frozen zone, access to cold water
frozen. Equipped with chiller and chiller 1 set each, multi-stage
working through sharing a set of refrigeration system.
7). Circulation filter system: by the stainless steel filter pump,
overflow circulation device, storage tank and other components,
stainless steel filter pump, storage tank using SUS304/316
stainless steel welded. Automatic heating and constant temperature
system. The cleaning tank adoptes wall heating mode, the heating
power depends on the size of the tank and the organic solvents
used, and equipped with a temperature controller, can control the
temperature at any time.
4. Cleaning Effect:
5. What is the Advantages of Gas Phase Refrigeration Ultrasonic Cleaner
with Cooling System?
Gas phase refrigeration ultrasonic cleaners with cooling systems
offer several advantages over traditional ultrasonic cleaners,
including:
1). Improved cleaning performance: The cooling system maintains the
temperature of the cleaning solution, preventing it from
overheating and reducing the effectiveness of the ultrasonic
cleaning process. This ensures that the ultrasonic waves are fully
optimized for cleaning, leading to improved cleaning performance.
2). Longer cleaning cycles: The cooling system allows for longer
cleaning cycles, as the cleaning solution can be maintained at a
consistent temperature for a longer period of time without
overheating or degrading.
3). Reduced risk of damage: The cooling system reduces the risk of
damage to delicate or sensitive parts, as it prevents the cleaning
solution from overheating and causing damage to the parts being
cleaned.
4). Improved safety: The cooling system reduces the risk of the
cleaning solution boiling over or splashing out, which can be a
safety hazard for operators.
5). Energy efficiency: The gas phase refrigeration system is
energy-efficient, as it uses the heat from the ultrasonic cleaning
process to power the cooling system. This reduces energy
consumption and can lead to cost savings over time.
Overall, gas phase refrigeration ultrasonic cleaners with cooling
systems provide an efficient, effective, and safe cleaning solution
for a wide range of industrial applications, and can be
particularly useful for cleaning delicate or sensitive parts that
require careful handling.

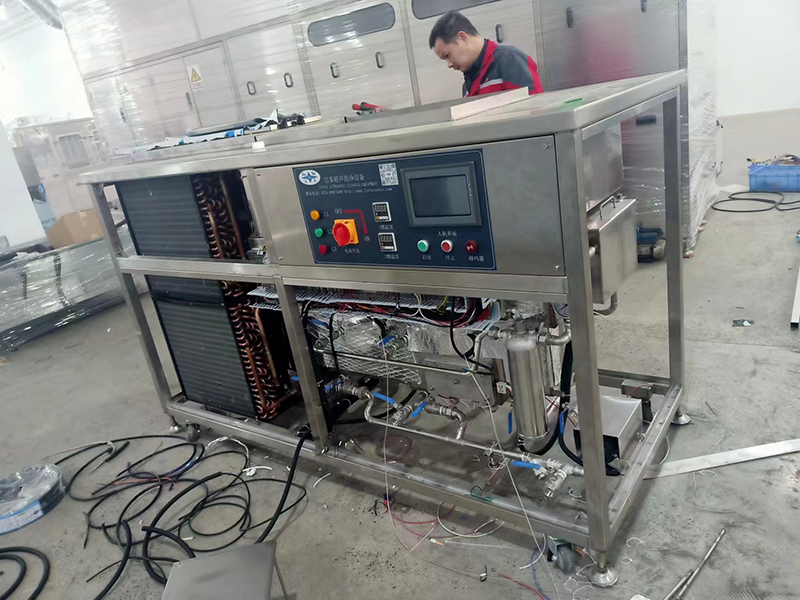

6. Factory Production Site
