Blue Whale Electronic Industrial Stainless Steel Big Tank Capacity
1200L
Ultrasonic Cleaner 12KW Ultrasonic Power 24KW Heater
1. Product Features:
1), The use of imported high-efficiency ultrasonic transducer,
compared with the same equipment to install more transducers,
cleaning is more powerful, high ultrasonic power density, cleaning
effect is better;
2), The use of 304 stainless steel as the inner tank, pure manual
argon welding, thickened to 2mm, strong and durable;
3). Digital control time, 1-99 minutes / hour can be adjusted, the
display is more accurate;
4), Constant temperature system, from room temperature to highest
95 °C adjustable, equipped with stainless steel heating tube,
heating faster;
5). Adjustable power, adjust the ultrasonic power according to the
user's cleaning needs, efficient and clean;
6), Memory function, the device with independent memory chip, set
the time after no need to re-adjust;
7). Industrial-grade electricity standard line, heat resistance is
not easy to soften, and it is safer to use;
8). Equipment configuration: stainless steel cleaning basket, drain
valve, power cord, silencer cover, movable caster, separate
generator control box, etc.
2. Specification of LanJ-D240, we also can customize the products as per your requirements.
Item | Value |
Overall machine size: | 1770*1800*1100mm |
Cleaning tank size: | 1500*1000*800MM |
Cleaning tank capacity: | 1200L |
Transducer quantity: | 240pcs |
Ultrasonic power: | 12000W |
Ultrasonic frequency: | 28Khz |
Heating power: | 24KW |
Temperature: | From room temperature to 95 °C adjustable |
Tank material: | stainless steel SUS304 in 2mm |
Timer: | 1-99 hours adjustable |
Additional: | with separate ultrasonic generators, recycle filtering system, 1
cleaning basket, industrial cable wire, wooden case packing. |

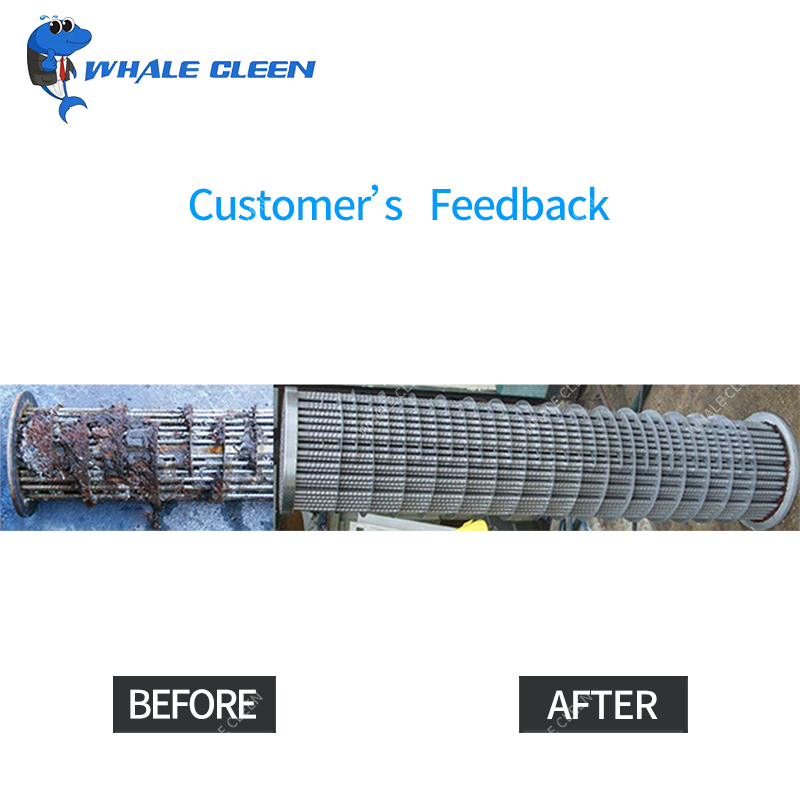

3. Cleaning Effect:
4. What is the principle of ultrasonic cleaning technology?
Ultrasonic cleaning technology is a cleaning method that uses
high-frequency sound waves to agitate a liquid cleaning solution.
The principle of ultrasonic cleaning technology is based on a
process known as cavitation.
When high-frequency sound waves are introduced into a liquid
cleaning solution, they create alternating high and low pressure
waves. This causes microscopic bubbles to form and collapse rapidly
in the liquid, a process known as cavitation. As these bubbles
collapse, they release a tremendous amount of energy, which creates
tiny shock waves that dislodge dirt, grime, and other contaminants
from the surface of the object being cleaned.
The cleaning solution used in ultrasonic cleaning contains
detergents, surfactants, and other chemicals that help to break
down and dissolve the contaminants that have been dislodged from
the surface of the object being cleaned. The cleaning solution is
heated to a temperature that enhances the cleaning process.
Ultrasonic cleaning technology is used in a wide range of
industries, including manufacturing, healthcare, and electronics.
It is particularly effective for cleaning complex or intricate
objects with hard-to-reach surfaces, such as surgical instruments,
jewelry, and electronic components.
5. How does ultrasonic cleaning technology compare to other
cleaning methods in terms of effectiveness and efficiency?
Ultrasonic cleaning technology is generally considered to be a
highly effective and efficient cleaning method, particularly for
cleaning complex or intricate objects. Compared to other cleaning
methods, such as manual cleaning or mechanical cleaning, ultrasonic
cleaning offers several advantages:
Efficiency: Ultrasonic cleaning is a fast and efficient cleaning
method, as it can clean multiple objects at once and can remove
contaminants from hard-to-reach areas that other cleaning methods
might miss.
Effectiveness: Ultrasonic cleaning is highly effective at removing
a wide range of contaminants, including dirt, grease, oil, rust,
and other types of stubborn residues. The process is gentle enough
to be used on delicate objects, yet powerful enough to remove even
the toughest stains.
Consistency: Ultrasonic cleaning provides consistent results from
one cleaning cycle to the next, ensuring that objects are
thoroughly cleaned every time.
Environmentally-friendly: Ultrasonic cleaning uses a water-based
cleaning solution that is biodegradable and
environmentally-friendly, making it a more sustainable cleaning
option than many other methods.
Labor-saving: Ultrasonic cleaning requires minimal labor, as the
cleaning process is automated and does not require manual scrubbing
or wiping.
Overall, ultrasonic cleaning technology is a highly effective and
efficient cleaning method that can provide superior cleaning
results compared to other methods, particularly for cleaning
complex or intricate objects.
6. Our Factory
Guangdong Blue Whale Ultrasonic Cleaning Technology Co., Ltd. and
Guangdong Jietai Ultrasonic Cleaning Equipment Co. Ltd. are founded
in 2003 and located in Dongguan City, Guangdong Province.
We have our own factory buildings including several floors of
production sites and offices, we have experienced engineers,
R&D team, QA team and sales team with a total around 300
workers.
We have focused on the R&D, manufacturing and sales of
ultrasonic cleaning equipment. Over the past 20 years, our products
have covered laboratory, medical, industrial engineering and
household filed, which are widely used in the lab of schools and
companies, surface coating treatment, mechanical engineering,
acoustic, electronics, photoelectric, ignition detonated, medical
treatment, semiconductor, watch, jewelry, PCB board, glasses, etc.,
and favored by customers.
With the strict impletation of ISO90001:2008 Quality Management
System, our products have passed CE, FCC, ROHS and some other
national and international certificates. We have got more than 50
patents. Innovation and customer-oriented are our most important
corporate culture.
We welcome customers to ODM, OEM, wholesale and customize. Welcome
to visit our factory.
