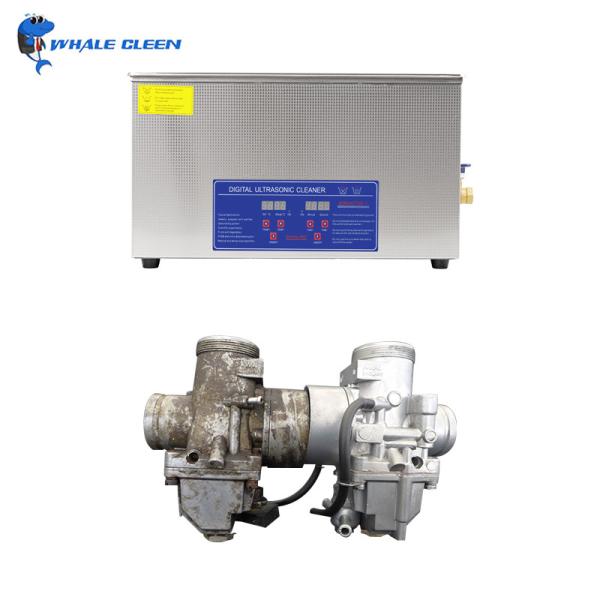

22L Ultrasonic Engine Cleaner 40KHz Industrial Ultrasonic Bath
Ultrasonic Cleaner Maintenance Tips:
You’ll get better performance from you ultrasonic engine cleaner by
following these recommendations:
Skim off the oil that comes to the surface of the solution and set
it aside.
Dirty solutions extend cleaning time. Drain the tank into a
container and along with the skimmed oil dispose of it following
local regulations.
Thoroughly clean the tank following the instruction manual.
Remember to degas fresh cleaning solutions.
Specification:
| Model | z-10 |
| Ultrasonic Frequency | 40,000 Hz |
| Tank Material | Stainless Steel SUS304 |
| Tank Capacity | 22 L |
| Timer | 1-30minutes ,Digital timer |
| Power Supply | AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz |
| Ultrasonic Power | 480W |
| Heating Power | 600 W , Digital Heating |
| Unit Size | 550×330×270mm ( L x W x H ) |
| Tank Size | 500×300×150 mm ( L x W x H ) |
| Package Size | 670×460×790(2pcs)mm ( L x W x H ) |
| N.W. | 13 kg |
| G.W. | 14 kg |
Specification Of Related Model:
If this model is not suitable for you, please check other in below
chart.
| Model | Tank size | Unit size | Volume | Actual ultrasonic power | Rated ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (W) | (kHz) | (W) | (MIN) | (℃) |
| Z-008 | 150x85x65 | 175x110x125 | 0.8 | 30 | 30 | 40 | no | 1-30 | no |
| Z-01 | 150x135×100 | 175x160x210 | 2 | 50 | 60 | 40 | 150 | 1-30 | 0-80 |
| Z-02 | 240x135x100 | 265x165x220 | 3.2 | 100 | 120 | 150 |
| Z-03 | 300x150x100 | 325x180x225 | 4.5 | 150 | 180 | 300 |
| Z-031 | 300x150x150 | 325x180x280 | 6.5 | 150 | 180 | 300 |
| Z-040 | 300x240x150 | 325x265x280 | 10.8 | 200 | 240 | 450 |
| Z-06 | 330x300x150 | 360x325x285 | 15 | 300 | 360 | 450 |
| Z-08 | 500x300x150 | 530x325×285 | 22 | 400 | 480 | 600 |
| Z-10 | 500x300x200 | 530x325x325 | 30 | 500 | 600 | 600
|
Cleaning Effect:
Why does ultrasonic fuel injectors work so well?
Ultrasonic fuel injector cleaning gets into the tiniest of nooks
and crannies where dirt and grime hide to scrub those areas clean.
The cavitating and de-cavitating cleaning action of the ultrasonic
cleaning system goes where brush bristles can’t. It has proven to
do what powerful cleaning solutions by themselves just cannot do.
This form of fuel injector cleaning can only work if the ability
exists to open and close the injectors while the fuel injectors are
suspended inside the ultrasonic cleaning bath. If you cannot open
and close the fuel injectors whilst inside the ultrasonic fuel
injector cleaning bath you will not achieve your goal of cleaning
the inside of the fuel injectors. Both cleaning liquids and the
ultrasonic frequency sound waves has to be able to get to the
components you want to clean.
Only one in about ten thousand fuel injectors needs to be replaced.
It then can be understood why ultrasonic fuel injector cleaning is a cheaper alternative to buying new injectors.
The cost of injector cleaning is negligible compare to the cost of fixing a damaged engine due to
fuel injector related problems.
Why take a chance do it right the first time out.
