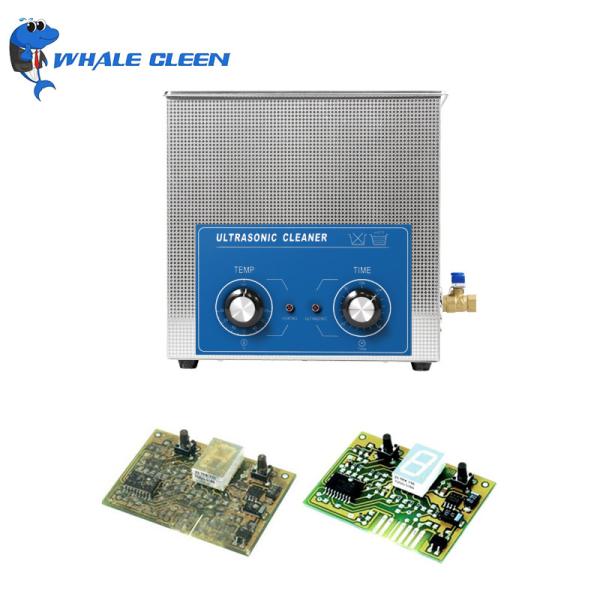

40000Hz Ultrasonic PCB Cleaning Machine 22L Industrial Ultrasonic
Bath
HOW TO SELECT AND SET UP YOUR IPAD CIRCUIT BOARD ULTRASONIC PCB
CLEANER
Ultrasonic units come in a variety of sizes from bench-top
ultrasonic cleaners to a floor-mounted industrial ultrasonic
cleaning machine, so you can select any size you need. Our most
popular models for cleaning iPad circuit boards are the 22L ZS-08
and 10L ZS-10. You should select an ultrasonic PCB cleaner equipped
with a frequency sweep function to prevent damage to sensitive
components during cleaning. Choose a model also equipped with a
heater to improve the ultrasonic cleaning process.
Whatever the model and size of ultrasonic circuit board cleaner you
use there are steps to take before cleaning begins.
Fill the ultrasonic cleaner tank to the fill line (or approximately
2/3 full) with ultrasonic cleaning solution and water.
Turn on the ultrasonic cleaner, set the heater to approximately
50°C, and operate for about 30 minutes to drive off cavitation
inhibiting entrained air. Degassing is complete when bubbles stop
coming to the surface and must be performed every time the tank is
filled with fresh circuit board cleaning solution.
Specification:
| Model | Z-08 |
| Ultrasonic Frequency | 40,000 Hz |
| Tank Material | Stainless Steel SUS304 |
| Tank Capacity | 22 L |
| Timer | 1-30minutes ,Mechanical timer |
| Power Supply | AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz |
| Ultrasonic Power | 480W |
| Heating Power | 800W , Digital Heating |
| Tank Size | 500×300×150 mm ( L x W x H ) |
| Unit Size | 550×335×270 mm ( L x W x H ) |
| Package Size | 635×405×340mm( L x W x H ) |
| Longest Gun You Can Clean | 480mm |
| N.W. | 13kg |
| G.W. | 14kg |
If this model is not suitable for you, please check other in below
chart.
| Model | Tank size | Unit size | Volume | Actual ultrasonic power | Rated ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (W) | (kHz) | (W) | (MIN) | (℃) |
| z-008 | 150x85x65 | 175x110x125 | 0.8 | 30 | 30 | 40 | no | 1-30 | no |
| z-01 | 150x135×100 | 175x160x210 | 2 | 50 | 60 | 40 | 150 | 1-30 | 0-80 |
| z-02 | 240x135x100 | 265x165x220 | 3.2 | 100 | 120 | 150 |
| z-03 | 300x150x100 | 325x180x225 | 4.5 | 150 | 180 | 300 |
| z-031 | 300x150x150 | 325x180x280 | 6.5 | 150 | 180 | 300 |
| z-04 | 300x240x150 | 325x265x280 | 10.8 | 200 | 240 | 450 |
| z-06 | 330x300x150 | 360x325x285 | 15 | 300 | 360 | 450 |
| z-08 | 500x300x150 | 530x325×285 | 22 | 400 | 480 | 600 |
| z-10 | 500x300x200 | 530x325x325 | 30 | 500 | 600 | 600
|
Cleaning Feedback From Customer:
Why does ultrasonic fuel injectors work so well?
Ultrasonic fuel injector cleaning gets into the tiniest of nooks
and crannies where dirt and grime hide to scrub those areas clean.
The cavitating and de-cavitating cleaning action of the ultrasonic
cleaning system goes where brush bristles can’t. It has proven to
do what powerful cleaning solutions by themselves just cannot do.
This form of fuel injector cleaning can only work if the ability
exists to open and close the injectors while the fuel injectors are
suspended inside the ultrasonic cleaning bath. If you cannot open
and close the fuel injectors whilst inside the ultrasonic fuel
injector cleaning bath you will not achieve your goal of cleaning
the inside of the fuel injectors. Both cleaning liquids and the
ultrasonic frequency sound waves has to be able to get to the
components you want to clean.
Only one in about ten thousand fuel injectors needs to be replaced.
It then can be understood why ultrasonic fuel injector cleaning is a cheaper alternative to buying new injectors.
The cost of injector cleaning is negligible compare to the cost of fixing a damaged engine due to
fuel injector related problems.
Why take a chance do it right the first time out.
