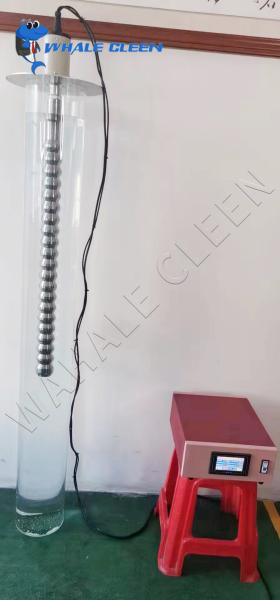

20KHz 1500W Ultrasonic Rod Transducer Ultrasonic Homogenizing
Emulsified Vibrating Rod Ultrasonic Reactor For Biodiesel
Ultrasonic Preparation of Nanoscale Devices
• Particle size uniformity, strong dispersion, crystal type
control, simple preparation, high yield
• Ultrasound nano-fabrication of monodisperse, well-defined
nanoparticles and reduced energy consumption
• Ultrasonic nanoprocessing is easier to achieve mesoscopic mixing
than conventional mixing techniques, eliminating local
concentration variations, increasing reaction rates, stimulating
the formation of new phases, inhibiting reunion
Probe sonication is significantly more powerful and effective when
compared to ultrasonic cleaner baths for nanoparticle applications.
A cleaner bath requires hours to accomplish what a probe Sonicator
can do in minutes. Sonicators can create a stable dispersion that
can remain in suspension for many months as evidenced in this
article excerpt:
Dispersions in vials (a) have coagulated CNTs in the body and at
the bottom by means of bath sonication for 8 hours, (b) appear
free-homogenous with probe sonication for 3 minutes, and (c) keep
free-homogenous even after 4 months of sitting at room temperature.
The concentration of Multi-Walled Carbon Nanotubes (MWCNTs) is 2500
mg/L and the MWCNTs/SDS ration is 1:10. (d) MWCNTs of (c) was
diluted to 25 mg/L with deionized water.
Applications:
Ultrasonic have extremely capable and versatile, it can safely
process a wide range of organic and inorganic materials – from
microliters to liters. Typical applications include: sample
preparation, dispersion, cell lysing, desegregation,
homogenization, particle size reduction, soil testing,
transesterification (including biodiesel production),
nanotechnology (including nanoparticle and Graphene dispersion),
acceleration of chemical reactions, degassing and atomization.
The new digital ultrasonicator is a powerful ultrasound processor
for liquid treatments on bench-top and industrial scale. Common
applications include homogenization, emulsification, dispersing &
particle fine milling, lysis & extraction, dissolving vagy
sonochemical reactions such as sono-synthesis and sono-catalysis.
Touch display, browser remote control, automatic data recording.
High Power and Full Process Control Powerful sonication is the
process solution for manifold liquid processing applications, such
as emulsifying, dispersing, milling vagy dissolving. The equipment
provides intense ultrasound waves to fulfill demanding tasks
without problems. To ensure a consistent process quality, not only
the power delivered is essential, the control and monitoring of all
important process parameters is key. The new generation of hdT
ultrasonicators enables the operator to pilot the ultrasonic device
via touch display or browser remote control.
What Is an Ultrasonic Rod Transducer?
Ultrasonic Rod transducers are designed to let the piezo element
create its ultrasonic vibrations across a cylindrical, tube type
element. The design allows the system to generate an ultrasonic
wave in an omnidirectional way ¯ the waves radiate in all
directions from the source, not just in one direction like
traditional surface plane mounted transducers.
What Ultrasonic Rod Transducers Mean to You
Because the ultrasonic waves radiate in all directions from the
source, every volume of your ultrasonic tank is actively creating
ultrasonic cavitations. That means that every surface area of every
item you put into the tank is exposed to the cleaning action. No
dead spots.
Tubular Equipment Type | Tubular Transducer Type | Frequency (KHz) | Ultrasound Output(W) | Total Length (mm) | Diameter (mm) | Static Capacity (pF±10%) | UCE-UE1 | US-61 | 15-28 | 1000 | 500 | Φ50-55 | 68000 | UCE-UE5 | US-25 | 15-28 | 1500 | 850 | Φ50-55 | 68000 | UCE-UE6 | US-16 | 15-28 | 2000 | 1100 | Φ50-55 | 132000 |
|
