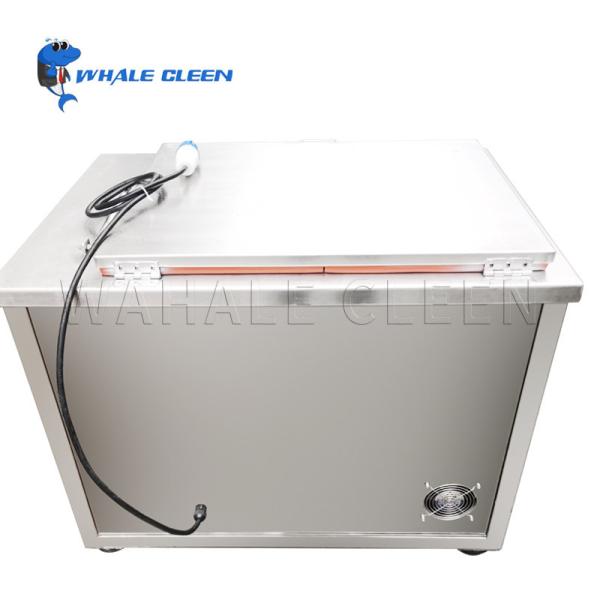

28K Explosion Proof Ultrasonic Cleaner With 135L Capacity With
Immersible Transducers
Quick detail of Explosion Proof Ultrasonic Cleaner
Power Supply: 110V/220V
Power (W): 2400W
Use: Cleaning Small X-ray tube components, Surgical Implants,
Electronic Components, powder coating nozzles
Application area: hospital, electronic manufacturing and metal
factory.
Function: Ultrasonic Cleaning With Flammable and explosive solvent
Description of Explosion Proof Ultrasonic Cleaner
Any time flammable solvents are used for cleaning purposes there is
risk of fire or explosion due to ignition of volatile vapors by a
flash source. Ignition can occur from any source due to spills or
as flammable solvent vapors spread. This post explains how you can
safely use flammable solvents in an ultrasonic cleaner.
An example of a widely used flammable solvent is isopropyl alcohol
(IPA). References to its use are presented in this post.
Specification:
| Specifications for ultrasonic cleaner JTS-1024FB |
| Model | JTS-1024FB |
| Tank capacity | 135L |
| Tank size | 690*500*390MM |
| Tank material | SUS304 Or SUS316 |
| Ultrasonic power | 2400W |
| Heating power | 0KW |
| Timer | 1-9999mins adjustable |
| Frequency | 28KHz |
| Control | Inside generator, more stable |
| Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
| Voltage | 110~140V,200~240V Single phase |
| Warranty | 1 year |
| Packing | 1unit/wooden case |
Feature of Explosion Proof Ultrasonic Cleaner
- After cleaning, the subjects will be shining as new
- Stainless steel tank
- Comes with basket and explosion proof power supply
- Timer setting: 0~9999min adjustable Quickly and effectively
cleaning, user-friendly
- New function for using flammable and explosive solvent
High frequency vibration, multi-dimensional cleaning:
The frequency reaches 45kHz, the penetrating power is strong, and
the sound wave is concentrated. Water molecules collide to create a
vacuum
Expansion and rupture, strong impact force, deep clean blind spots,
remove dirt
Reduce residue while not hurting private article
Advantages of Explosion Proof Ultrasonic Cleaner
OEM/ODM available,customizable and drawings are accepted
Safe to use
Suitable for special industries
Detail pictures:
Ultrasonic Flammable Liquid Cleaning Applications
Most ultrasonic cleaning applications involve solvents that don't
present a risk during the cleaning process. However, some
situations call for the use of flammable solvents. According to the
Occupational Safety and Health Administration (OSHA), a flammable
liquid is one that has a flashpoint below 199.4F (93C). The
flashpoint is the lowest temperature at which the vapors of a
volatile material will ignite when exposed to an ignition source.
According to the National Electrical Code (NEC), a hazardous
environment is created whenever flammable solvents are used, as
fumes can be easily ignited by any ignition source. Possible
ignition sources include any nearby electrical equipment, even an
ultrasonic cleaner itself. What's more, ultrasonic cleaning causes
a temperature increase in the cleaning fluid. When using a
flammable solvent, the rise in temperature will cause evaporation
and fumes will accumulate above the tank. Even seemingly harmless
static electricity could act as an ignition source for these
vapors. A flammable solvent ultrasonic tank is specially designed
to enable you to work safely with volatile cleaning fluids such as
IPA, ethanol, methyl ethyl ketone (MEK), hexane, cyclohexane and
acetone.
FAQ
Could I Get one sample of the Ultrasonic Cleaner?
Yes, sample orders welcomed. Sample details please contact with
saler. If need customized, Silk printing time is 3-7 days, hot
transfer time is 10 days.
2. Do you have your own factory?
Yes, we have OEM products and professional for plastic nealy 20
years.
3. Could I use my own logo or design on the Ultrasonic Cleaner?
Yes, Customized logo and design on mass production are available.
And you can choose the colors or materials.
