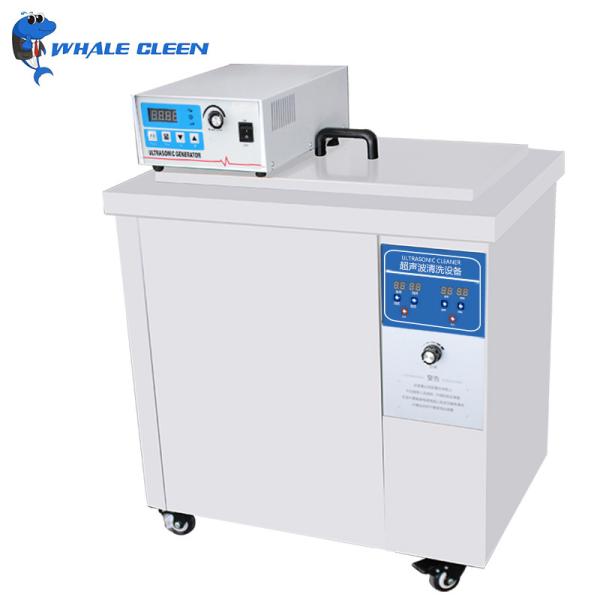

28K Explosion Proof Ultrasonic Cleaner With 45-360L Tank Capacity
With Immersible Transducers
1. Quick detail of Explosion Proof Ultrasonic Cleaner
Power Supply: 110V/220V
Power (W): 0-3600W, can be chosen
Use: Cleaning Small X-ray tube components, Surgical Implants,
Electronic Components, powder coating nozzles
Application area: hospital, electronic manufacturing and metal
factory.
Function: Ultrasonic Cleaning With Flammable and explosive solvent.
2. How Does it Work?
1). Ultrasonic Cleaning Systems are based on high-frequency sound
waves which are transmitted through a flowing liquid where the
piece to be clean is submerged. Treatment takes between 10 and 45
minutes, but no operator presence is needed.
2). Ultrasonic waves produce cavitation, in which millions of gas
bubbles are generated into the liquid, and then compressed until
they implode, releasing huge amounts of energy. This energy hits
the dirt, grease or carbon dust over the surface of the objects to
be cleaned, removing it without damaging the piece.
3). The result is a micro-brushing phenomenon which cleans the
pieces treated. As gas bubbles are only 1 um, they penetrate into
every orifice, making Ultrasonic Cleaning best system for highly
complex components in any kind of material (cast iron, steel,
aluminium, copper, brass, titanium, bronze, some plastics &
rubbers, ....).
3. Description of Explosion Proof Ultrasonic Cleaner
Any time flammable solvents are used for cleaning purposes there is
risk of fire or explosion due to ignition of volatile vapors by a
flash source. Ignition can occur from any source due to spills or
as flammable solvent vapors spread. This post explains how you can
safely use flammable solvents in an ultrasonic cleaner.
An example of a widely used flammable solvent is isopropyl alcohol
(IPA). References to its use are presented in this post.
4. Specification:
| Specifications for ultrasonic cleaner JTS-1024FB |
| Model | JTS-1024FB |
| Tank capacity | 45-360L, can be chosen |
| Tank material | SUS304 Or SUS316 |
| Ultrasonic power | 0-3600W, can be chosen |
| Heating power | 0KW |
| Timer | 1-9999mins adjustable |
| Frequency | 28KHz |
| Control | Inside generator, more stable |
| Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
| Voltage | 110~140V,200~240V Single phase |
| Warranty | 1 year |
| Packing | 1unit/wooden case |
5. Detail pictures:
6. Packing Method:
7. Cleaning Effect:
8. Our Advantages/Service
1). Help customer analyze product project and provide solution.
2). Free sample test.
3). Skilled jig design services.
4). Provide shipping/delivery information checking service.
5). One year guarantee, all life maintain promise.
6). 24 hours feedback speed by email of others.
