Fully Automated Multi-stage Industrial Ultrasonic Cleaner For
Electronics Part
After Sales Service:
We will provide installation and test service for automatical
cleaning line at your facility until cleaning is working properly.
And we offer 5 years with 24/7 work warranty period.
Quality Control:
We are using hight quality material like Simens, Schneider
electrical parts. Our machine is designed by experienced engineer
who have designed machines for Foxconn, Cummins and BOSCH. The
workers also have years experience building automatical cleaning
line. Our QC system is covering from raw material to finishing
machine.
Experience:
We have worked with many famous brand company and goverment project
like Foxconn, Cummins and railway department. We also have years
international experience with installating and testing machine in
other country. We will provide full service for our customer after
purchasing.
Payment Term:
We can accept flexible payment term due to different situation like
10~20% payment after installation and test service.
We also need some support from you in some case.
Automated Gantry System:
Rack and pinion style. Capable of different recipe programs and
capable of skipping stations. Load and unload stations equipped
with conveyor feed in-axes with machine.
Fast moving automation platform available, and includes features
not included with any competitive equipment.
Smallest most compact automation platform available. System arrives
FULLY PROGRAMMED with turn-key operation. No programming other than
recipe data will be required. System also includes the following
features:
· Single or Dual position load and unload platform
· 3-color Light tower to indicate operating condition of system
from a distance
· Automation Direct touch-screen (AB optional)
· Automation Direct PLC control system (AB optional)
· 9 processing baskets
· Random Recipe Processor: Operators can add different parts with
different recipes at any time. Other systems must process all
baskets in queue with the same recipe. The system allows any basket
with any recipe to be added at any time.
· 100 pound load capacity
· Capabilities of loading and unloading inline at both ends with
customers load/unload station.
· Conveyor Belt access points / PLC Hand shake
Technical Features:
1.Over flow step by step: It can improve cleaning effectr and save
cost.
2.Stainless steel trolley system for loading and unloading.
3.Automatical basket return system
4.Minimum 5 mm thick Stainless steel AISI 316 sheet metal plate for
making good base for mounting Robot arm on
5.Front side must be fully closed with sliding doors for easy
manipulation
6.Electrical commands with soft touch monitor
Specification:
| Specifications Of Customized 8 Tanks Cleaning Line LanJ-80666AD |
| Model | LanJ-80666AD |
| Each Tank capacity | 360L |
| Each Tank size | 100*600*600mm |
| Tank material | SUS316 |
| Ultrasonic power | 33.3KW |
| Heating power | 40KW |
| Timer | 1-99h adjustable |
| Temperature | 0-80c adjustable |
| Frequency | 28/40khz |
| Control | outside generator box |
| Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
| Power Supply | 3phases |
| Warranty | 5 years with 24/7 work |
| Packing | Special packing design |
Suitable cleaning item:
Automotive parts, electronic parts, black metal, nonferrous metals,
Mobile panel, TV LCD/LED, Digital projection, lens, Locomotive parts, airplane parts and etc.
Contaminant can be removed:
oil, grease, scale, rust, oxide skin, finger print, high temperature carbon, polishing paste, particles, and etc.
Popular Industry: Automotive, electronics, home appliance, mobile
phone, optics, railway, aerospace, electroplate and etc.

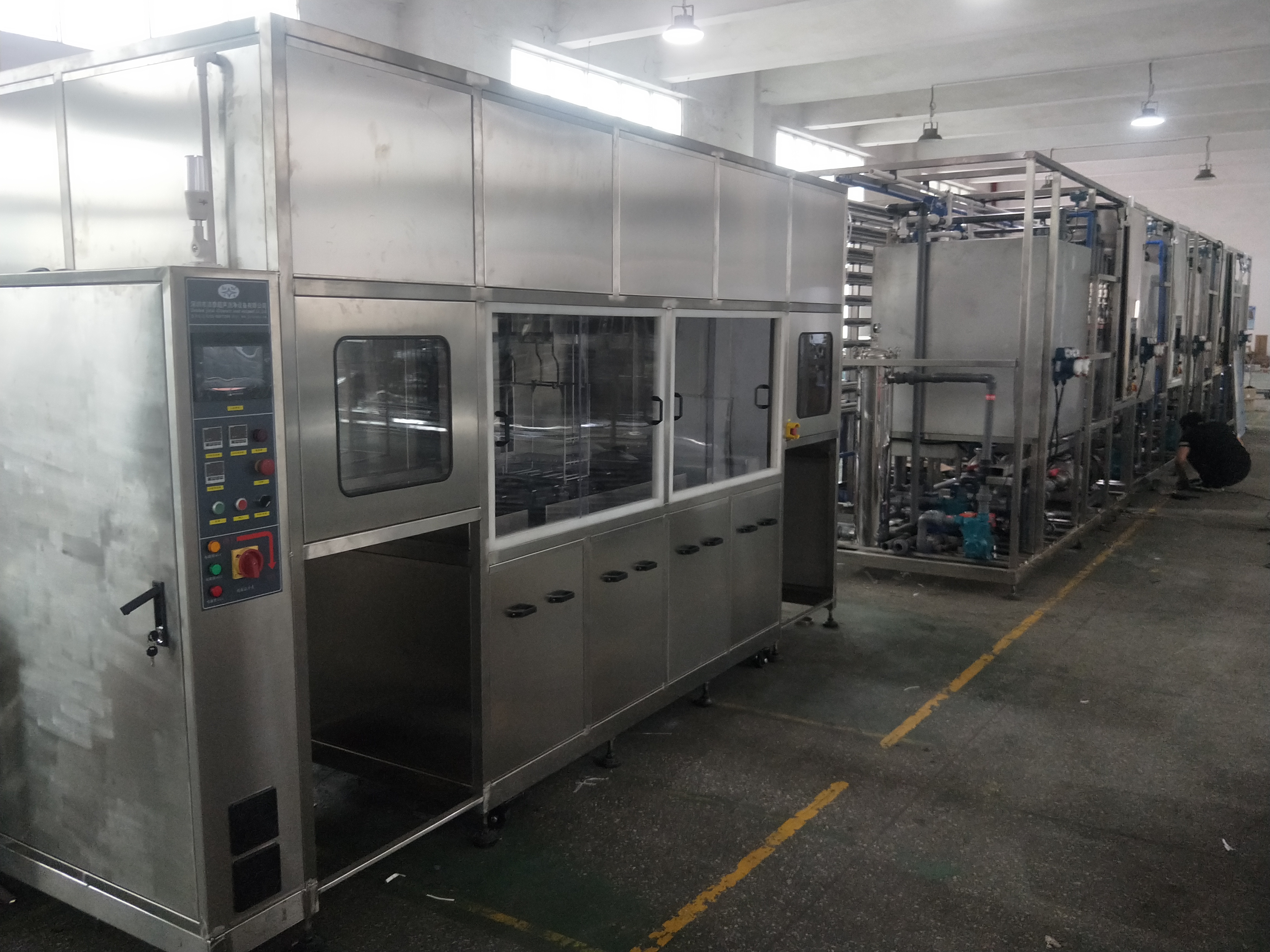

Production Pictures:
