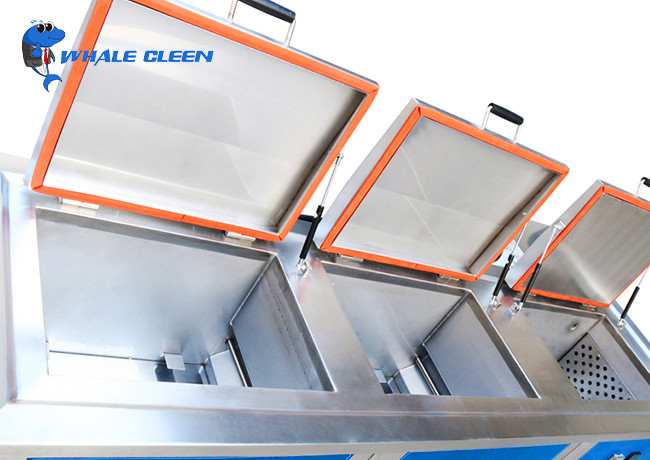

99L Blue Whale 3000W DPF Filter Three Baths Industrial Ultrasonic Cleaning
1.Quality Control:
We are using hight quality material like Simens, Schneider electrical parts. Our machine is designed by experienced engineer who have designed machines for Foxconn, Cummins and BOSCH. The workers also have years experience building automatical cleaning line. Our QC system is covering from raw material to finishing machine.
2.Professional Experience:
We have worked with many famous brand company and goverment project like Foxconn, Cummins and railway department. We also have years international experience with installating and testing machine in other country. We will provide full service for our customer after purchasing.
3.Payment Term:
We can accept flexible payment term due to different situation like 10~20% payment after installation and test service.
We also need some support from you in some case.
4.After Sales Service:
We will provide installation and test service for automatical cleaning line at your facility until cleaning is working properly.
And we offer 1 year with 24/7 work during warranty period.
5.Non-standard customization
We are the source of cleaning machine manufacturers, can help customers customize various types of non-standard cleaning machine, fast delivery.
2.Detail Information
place of origin
Guangdong, China.
brand name
Blue Whale / Whale Cleen
power(w)
0~1500W adjustable for 1st 2nd tank, total 3000W
dimension(l*w*h)
Tank size 550*450*400mm, can be customized
Each Tank Capacity
99 Litre
Ultrasonic Frequency
40Khz or 28Khz, can be customize
Ultrasonic Power
1st 2nd tank 0~1500W adjustable, total 3000W
Tank Material
SUS304 or SUS316, can be customized
Heater
Room temp. to 95℃ adjustable
Each Tank Size
550*450*400mm ( L x W x H )
After Warranty Service
Video technical support
Function
Ultrasonic Cleaning, filtering, heating, rinsing, drying
Transducer Qty
30pcs each for 1st 2nd tank, total 60pcs
Packaging and delivery
Selling Units:
Single item
Single package size:
60X60X60 cm
Single gross weight:
68.000 kg
1. Three tanks manual cleaning machine, transmission speed variable frequency adjustable, cleaning time, cleaning temperature adjustable, simple operation, with high cleaning efficiency, easy maintenance and other characteristics;
2. cleaning cavity inside the nozzle according to demand can be up and down, right and left, side, fixed-point layout, to ensure that the cleaning total no dead angle;
3. the equipment technology choice is rich: ultrasonic cleaning, ultrasonic rinsing, spray cleaning, Compressed air cutting water, hot air drying, etc.
4. the equipment can be equipped with a real-time circulating filtration system, the utility model has the advantages of high liquid utilization efficiency, wide application range of equipment and low labor intensity;
This product support non-standard custom, can provide design drawings and cleaning program
3.Product details:
Blue whale through ultrasonic cleaning machine, adopt through ultrasonic cleaning technology, using frequency 28 khz/40 khz/68 khz/80 khz/120 khz other ultrasonic frequency cleaning. The cleaning system is generally composed of spray system, nozzle rotating device, phosphating system, automatic temperature control and heating system, air cutting and water blowing system, etc.
For some specific cleaning objects, there are also hot air drying, special cleaning rack (basket) and cleaning fluid filtration circulation system. The main features of the through-type ultrasonic cleaning machine,first, it can avoid the surface damage of high-finish objects;second, it can remove the sub-micron size particles attached to the surface; third, it can be immersed in liquid, the side facing the transducer can be cleaned, so it is necessary to clean both sides.
4. Cleaning Effect:
5.Certificates and Honors
6.Other recommended hot-selling cleaning machines:
Automatical Ultrasonic Parts Cleaners Six Tanks Ultrasonic Cleaner For Auto Parts
Four Tanks 175L Ultrasonic Parts Washer Copper Parts Ultrasonic Washing Device
7.Please note:
All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong Blue Whale Clean is a professional Ultrasonic Cleaner manufacturer with 20 years of history in GongDong,China. Our products are updated and upgraded every year.
If you are interested in this product and want to know more details, please contact us on line or E-mail to us, we will have professional salesman team service for you. Thank you for your time.
