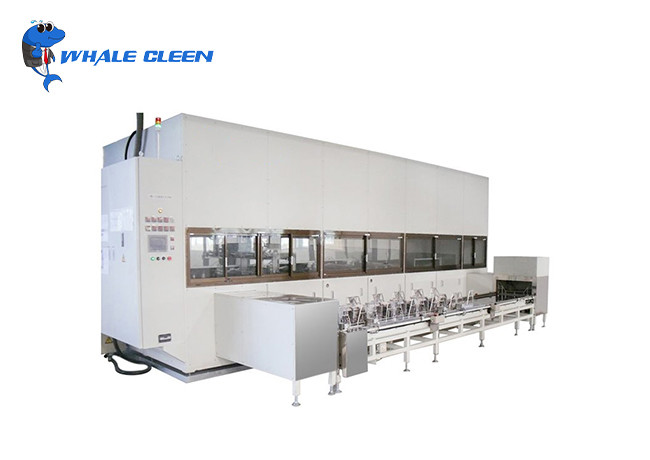

Whale clean Automatic Hydrocarbon Gas Phase Ultrasonic Cleaning
Machine
Product Features:
The cleaning process is emulsified ultrasonic cleaning + ultrasonic
dehydration cleaning +HC
Ultrasonic degassing cleaning +HC ultrasonic vacuum fine washing
+HC steam bath, vacuum drying cleaning method. The parts are dried
by vacuum, which has the advantages of fast drying speed, clean
surface and no water marks after drying.
PLC programmable controller controls the whole process operation,
with automatic and manual operation mode, man-machine interface
operation, cleaning rhythm, temperature setting and other key
parameters can be set and adjusted on the human machine.
The cleaning machine is equipped with circulating filtration and
vacuum distillation recovery system, which ensures the purity of
hydrocarbon (HC) cleaning agent and ensures the cleaning quality of
parts; The vacuum distillation recovery system also enables the
recycling of hydrocarbon (HC) cleaners.
Servo motor positioning control is adopted for walking around and
up and down. The location must be accurate.
Temperature and liquid level are automatically sensed and connected
with audible and visual alarm.
When ultrasonic automatic connection, there is a basket start, no
basket stop, reduce consumption and reduce dryness; The whole
machine is provided with a tray and a liquid tray to prevent the
liquid from dripping on the ground.
Equipped with industrial condensing machine system, supporting
cooling capacity to meet the continuous operation of the whole
machine.
Advantages
1. Superior Cleaning Performance
- Deep Penetration: Ultrasonic cavitation combined with vapor-phase
rinsing ensures complete removal of contaminants from complex
geometries, including aerospace turbine blades and medical implants
.
- Residue-Free Results: Vapor-phase drying eliminates watermarks
and chemical residues, critical for precision industries like
semiconductors .
2. Cost-Effective Operation
- Reduced Labor: Fully automated workflow reduces manual handling
by 70%, ideal for high-volume production lines .
- Long-Term Savings: Solvent recycling and energy-efficient design
cut operational costs by 30–40% compared to traditional methods .
3. Eco-Friendly & Safe
- Low Toxicity: Hydrocarbon solvents are non-ozone-depleting and
biodegradable, unlike chlorinated alternatives .
- Worker Protection: Enclosed system minimizes operator exposure to
chemicals, with built-in gas sensors and emergency shutoff .
4. Versatility
- Material Compatibility: Suitable for metals (stainless steel,
aluminum), plastics, and ceramics, with adjustable parameters for
delicate components .
1.Quality Control:
We are using hight quality material like Simens, Schneider
electrical parts. Our machine is designed by experienced engineer
who have designed machines for Foxconn, Cummins and BOSCH. The
workers also have years experience building automatical cleaning
line. Our QC system is covering from raw material to finishing
machine.
2.Professional Experience:
We have worked with many famous brand company and goverment project
like Foxconn, Cummins and railway department. We also have years
international experience with installating and testing machine in
other country. We will provide full service for our customer after
purchasing.
3.Payment Term:
We can accept flexible payment term due to different situation like
10~20% payment after installation and test service.
We also need some support from you in some case.
4.After Sales Service:
We will provide installation and test service for automatical
cleaning line at your facility until cleaning is working properly.
And we offer 1 years with 24/7 work during warranty period.
5.Non-standard customization
We are the source of cleaning machine manufacturers, can help
customers customize various types of non-standard cleaning machine,
fast delivery.
Customer has customized prototype display
Application Field:
| Industry | The cleaning products and materials | Clear dirt |
| Semi-conductor | Integrated circuit, power tube, silicon wafer, diode, lead frame,
capillary, tray, etc. | Hards, etching oil, polishing wax, dust particles, etc, |
| Electrical& electronic machine | Tube parts, cathode ray tube, printed circuit board, quartz parts,
electronic components, telephone switching equipment, speaker
components, power meter, LCD glass, core iron parts, computer
floppy disk, video parts, head, photo die mask, etc | Fingerprint, powder, cutting oil, stamping oil, iron filings,
polishing materials, walnut powder, polishing wax, resin, dust,
etc. |
| Precision machine | Bearing, sewing machine parts, typewriter, textile, machine,
optical-mechanical device, gas valve, watches cameras, metal filter | Machine cutting oil, iron filings, polishing powder, fingerprint,
oil, grease, dirt, etc |
| Optical device | Glasses, lens, prism, optical lens, filter lens, glass device,
film, optical fiber, etc. | Plastic resin, paraffin, fingerprinting, etc. |
| Hardware& machinery parts | Bearing, gear, ball, metal shaft parts, tools, adjustable valve and
cylinder parts, burner, compressors, hydraulic press, gun and
ultracentrifuge, city water faucet, etc | Cutting oil, iron filings, grease, polishing powder, fingerprint
and so on. |
| Medical instrument | Medical instrument, denture, etc. | Iron filings., Polishing powder, oil, stamping oil, dirt, etc. |
| Electroplate | Galvanized parts, mold, stamping parts, etc. | Polishing scrap iron, oil, black iron shell, rust, oxidation shell,
scrap iron, polishing powder, stamping oil, dirt, etc. |
| Car parts | Piston ring, carburetor, flow meter housing, compressor shell,
electrical components, etc. | Iron filings, polishing powder, oil stamping oil, dirt, etc. |
| Chemical fiber | Chemical or artificial fiber nozzle filter protector chemical fiber
texture, etc. | The Chemical colloid, glue, and other solid material. dust. Etc. |
