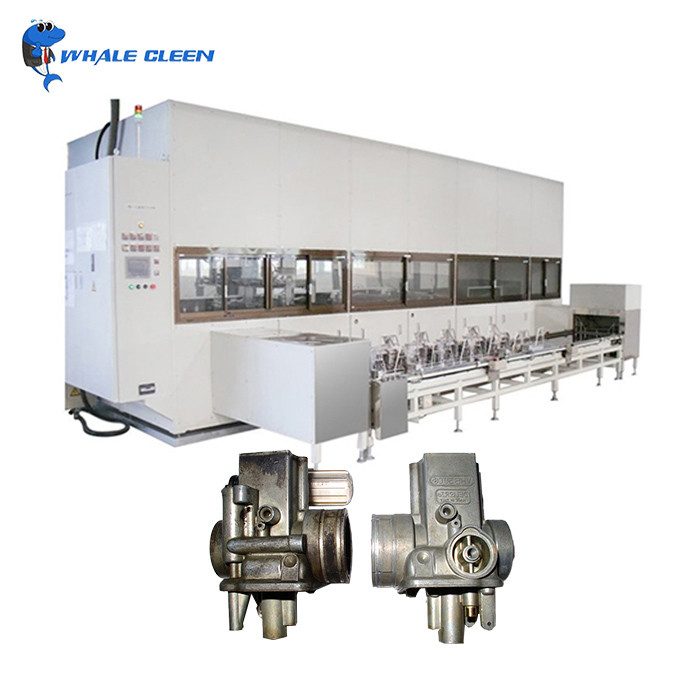

Muti-Tank Automatic Vacuum Cleaning Machine with Automatic Gantry
System
Product Features:
1. Modular muti-Tank Design
- Sequential cleaning, rinsing, and drying processes in a single
automated system.
- Vacuum environment ensures thorough removal of contaminants
(oils, particulates, flux residues).
2. Precision Cleaning Technology
- High-pressure spray, ultrasonic agitation, and vacuum drying for
superior cleanliness.
- Adjustable parameters (temperature, pressure, cycle time) for
versatile applications.
3. Automatic Gantry System
- Robotic arm for precise workpiece transfer between tanks,
reducing manual handling.
Rack and pinion style. Capable of different recipe programs and
capable of skipping stations.
Load and unload stations equipped with conveyor feed in-axes with
the machine.
Single or Dual-position load and unload platform
· 3-color Light tower to indicate operating condition of the system
from a distance
· Automation Direct touch-screen (AB optional)
· Automation Direct PLC control system (AB optional)
· 9 processing baskets
· Random Recipe Processor: Operators can add different parts with
different recipes at any time. Other systems must process all
baskets in the queue with the same recipe. The system allows any
basket with any recipe to be added at any time.
· 100 pound load capacity
· Capabilities of loading and unloading inline at both ends with
customers load/unload station.
· Conveyor Belt access points / PLC Handshake
- Customizable fixtures to accommodate various part sizes and
shapes.
4. Intelligent Control System
Conveyor Belt access points / PLC Handshake
- PLC/HMI interface for easy operation and real-time monitoring.
- Recipe storage for quick setup of different cleaning programs.
5. Energy Efficiency
- Closed-loop vacuum drying minimizes solvent consumption and
energy costs.
- Low noise and emission design for eco-friendly operation.
Key Advantages:
- Enhanced Productivity: Fully automated workflow reduces labor and cycle time.
- Consistent Quality: Uniform cleaning results across batches.
- Cost Savings: Long-term savings from reduced solvent usage and maintenance.
- Safety Compliance: Vacuum seal prevents hazardous fumes, meeting industrial safety
standards.
Application Fields:
- Electronics: Printed circuit boards (PCBs), semiconductors,
connectors.
- Medical Devices: Surgical instruments, implant components.
- Automotive: Fuel injectors, precision engine parts.
- Aerospace: Turbine blades, hydraulic components.
- Optics: Lenses, mirrors, optical coatings.
- General Manufacturing: Precision metal, plastic, or ceramic
parts.
| Industry | The cleaning products and materials | Clear dirt |
| Semi-conductor | Integrated circuit, power tube, silicon wafer, diode, lead frame,
capillary, tray, etc. | Hards, etching oil, polishing wax, dust particles, etc, |
| Electrical& electronic machine | Tube parts, cathode ray tube, printed circuit board, quartz parts,
electronic components, telephone switching equipment, speaker
components, power meter, LCD glass, core iron parts, computer
floppy disk, video parts, head, photo die mask, etc | Fingerprint, powder, cutting oil, stamping oil, iron filings,
polishing materials, walnut powder, polishing wax, resin, dust,
etc. |
| Precision machine | Bearing, sewing machine parts, typewriter, textile, machine,
optical-mechanical device, gas valve, watches cameras, metal filter | Machine cutting oil, iron filings, polishing powder, fingerprint,
oil, grease, dirt, etc |
| Optical device | Glasses, lens, prism, optical lens, filter lens, glass device,
film, optical fiber, etc. | Plastic resin, paraffin, fingerprinting, etc. |
| Hardware& machinery parts | Bearing, gear, ball, metal shaft parts, tools, adjustable valve and
cylinder parts, burner, compressors, hydraulic press, gun and
ultracentrifuge, city water faucet, etc | Cutting oil, iron filings, grease, polishing powder, fingerprint
and so on. |
| Medical instrument | Medical instrument, denture, etc. | Iron filings., Polishing powder, oil, stamping oil, dirt, etc. |
| Electroplate | Galvanized parts, mold, stamping parts, etc. | Polishing scrap iron, oil, black iron shell, rust, oxidation shell,
scrap iron, polishing powder, stamping oil, dirt, etc. |
| Car parts | Piston ring, carburetor, flow meter housing, compressor shell,
electrical components, etc. | Iron filings, polishing powder, oil stamping oil, dirt, etc. |
| Chemical fiber | Chemical or artificial fiber nozzle filter protector chemical fiber
texture, etc. | The Chemical colloid, glue, and other solid material. dust. Etc. |
1.Quality Control:
We are using hight quality material like Simens, Schneider
electrical parts. Our machine is designed by experienced engineer
who have designed machines for Foxconn, Cummins and BOSCH. The
workers also have years experience building automatical cleaning
line. Our QC system is covering from raw material to finishing
machine.
2.Professional Experience:
We have worked with many famous brand company and goverment project
like Foxconn, Cummins and railway department. We also have years
international experience with installating and testing machine in
other country. We will provide full service for our customer after
purchasing.
3.Payment Term:
We can accept flexible payment term due to different situation like
10~20% payment after installation and test service.
We also need some support from you in some case.
4.After Sales Service:
We will provide installation and test service for automatical
cleaning line at your facility until cleaning is working properly.
And we offer 1 years with 24/7 work during warranty period.
5.Non-standard customization
We are the source of cleaning machine manufacturers, can help
customers customize various types of non-standard cleaning machine,
fast delivery.
Application Field:
| Industry | The cleaning products and materials | Clear dirt |
| Semi-conductor | Integrated circuit, power tube, silicon wafer, diode, lead frame,
capillary, tray, etc. | Hards, etching oil, polishing wax, dust particles, etc, |
| Electrical& electronic machine | Tube parts, cathode ray tube, printed circuit board, quartz parts,
electronic components, telephone switching equipment, speaker
components, power meter, LCD glass, core iron parts, computer
floppy disk, video parts, head, photo die mask, etc | Fingerprint, powder, cutting oil, stamping oil, iron filings,
polishing materials, walnut powder, polishing wax, resin, dust,
etc. |
| Precision machine | Bearing, sewing machine parts, typewriter, textile, machine,
optical-mechanical device, gas valve, watches cameras, metal filter | Machine cutting oil, iron filings, polishing powder, fingerprint,
oil, grease, dirt, etc |
| Optical device | Glasses, lens, prism, optical lens, filter lens, glass device,
film, optical fiber, etc. | Plastic resin, paraffin, fingerprinting, etc. |
| Hardware& machinery parts | Bearing, gear, ball, metal shaft parts, tools, adjustable valve and
cylinder parts, burner, compressors, hydraulic press, gun and
ultracentrifuge, city water faucet, etc | Cutting oil, iron filings, grease, polishing powder, fingerprint
and so on. |
| Medical instrument | Medical instrument, denture, etc. | Iron filings., Polishing powder, oil, stamping oil, dirt, etc. |
| Electroplate | Galvanized parts, mold, stamping parts, etc. | Polishing scrap iron, oil, black iron shell, rust, oxidation shell,
scrap iron, polishing powder, stamping oil, dirt, etc. |
| Car parts | Piston ring, carburetor, flow meter housing, compressor shell,
electrical components, etc. | Iron filings, polishing powder, oil stamping oil, dirt, etc. |
| Chemical fiber | Chemical or artificial fiber nozzle filter protector chemical fiber
texture, etc. | The Chemical colloid, glue, and other solid material. dust. Etc. |
