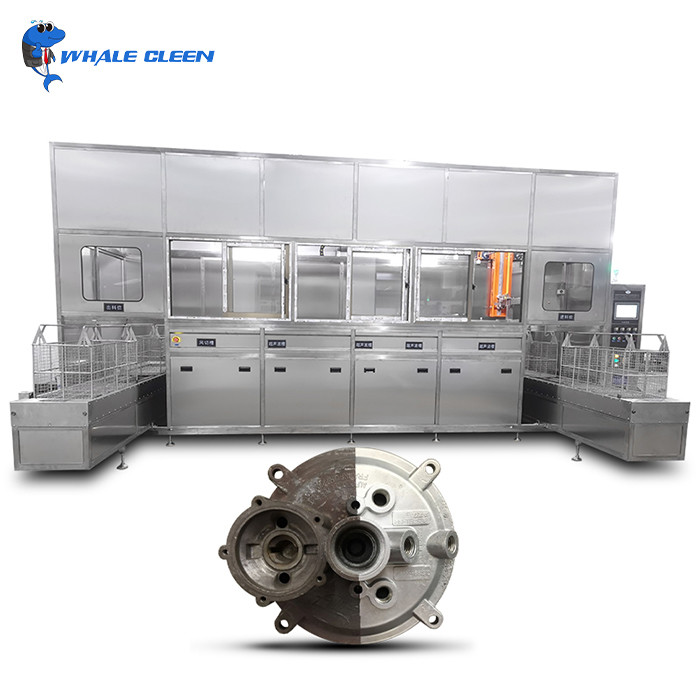

Industrial Full Automatic PLC Hydrocarbon Vapor Ultrasonic Cleaning
Machine for car parts and motor
1. Working Principle
(1) Ultrasonic Cavitation: The ultrasonic generator produces high -
frequency electrical signals that are transmitted to the ultrasonic
transducers installed at the bottom or sides of the cleaning tank.
These transducers convert the electrical energy into mechanical
vibrations, generating ultrasonic waves that propagate through the
cleaning solution. The ultrasonic waves create regions of high and
low pressure, causing the formation and collapse of millions of
tiny bubbles (cavitation). When these bubbles implode near the
surface of the objects being cleaned, they generate intense
shockwaves and micro - jets that dislodge and remove dirt, oils,
and other contaminants.
(2) Vapor Degreasing: The cleaning agent is heated to its boiling
point, creating a vapor zone above the liquid surface in the
cleaning tank. As the cleaned parts are lifted out of the liquid
and passed through this vapor zone, the hot vapors condense on the
cooler surface of the parts. The condensed liquid dissolves and
removes any remaining contaminants, leaving the parts dry and
residue - free.
(3) Heating and Circulation: The heating system maintains the
cleaning solution at the optimal temperature to enhance the
solubility of contaminants and the effectiveness of the ultrasonic
cleaning. The circulation pump continuously circulates the cleaning
solution, ensuring uniform cleaning and preventing the buildup of
dirt and contaminants in the tank.
2.Product Features and Advantages
(1) Advanced Control System: Equipped with a high - precision PLC control system, enabling
fully automated operation. It allows for precise setting of
cleaning time, temperature, ultrasonic frequency, and other
parameters, ensuring consistent and reliable cleaning results.
(2) Dual Cleaning Media Compatibility: Capable of using both water - based and hydrocarbon cleaning
agents, providing flexibility to handle various types of dirt,
oils, and contaminants. Water - based agents are ideal for general
- purpose cleaning and are environmentally friendly, while
hydrocarbon agents are highly effective for removing stubborn
grease and oil stains.
(3)Powerful Ultrasonic Technology: High - intensity ultrasonic waves are generated to create millions
of microscopic bubbles that implode upon contact with the surface
of the objects being cleaned. This cavitation effect penetrates
deep into crevices, holes, and complex geometries, thoroughly
removing dirt without damaging the parts.
(4) Vapor Degreasing Function: Incorporates a vapor degreasing stage, which uses the condensation
of cleaning agent vapors on the cool surface of the parts to
dissolve and remove residual contaminants. This ensures a spotless
and residue - free finish.
(5)Efficient Heating and Circulation: Features an efficient heating system that quickly raises the
cleaning solution to the optimal temperature for enhanced cleaning
performance. The continuous circulation of the cleaning solution
helps to maintain its cleanliness and effectiveness throughout the
cleaning process.
(6)Safety and Environmental Protection: Designed with multiple safety features, such as over - temperature
protection, leakage detection, and automatic shut - off in case of
emergencies. Water - based cleaning options reduce the
environmental impact, and the machine can be equipped with solvent
recovery systems for hydrocarbon agents to minimize waste and
costs.
(7) User - Friendly Interface: The intuitive human - machine interface (HMI) makes it easy for
operators to set up cleaning programs, monitor the cleaning
process, and access maintenance information.
(8) supports non-standard customization
This fully automatic cleaning machine supports non-standard
customization. Customers can provide their drawings or purchasing
requirements, and we will quickly design and manufacture according
to your needs.
3. Cleaning Process
(1) Loading: Place parts into baskets/fixtures and load them into
the machine.
(2) Pre - Rinse (Optional): Remove large debris with water or a
light cleaning solution.
(3)Ultrasonic Cleaning: Fill the tank with the chosen cleaning
agent, heat it, and activate ultrasonic waves for a set time.
(4)Rinsing: Use clean water or rinsing agent to remove residual
cleaning solution and contaminants, with multiple rinses if needed.
(5)Vapor Degreasing: Lift parts into the vapor zone for final
degreasing and drying.
(6) Drying: Air - dry or use hot air to ensure parts are completely
dry before removal.
4.product in details
| Item | Details |
| Brand | Whale Clean |
| Purpose | Hardware Cleaning |
| Working Mode | Fully Automatic PLC Program Control |
| Weight | Customized as Required |
| Overall Dimensions | Customized as Required |
| Temperature Control Range | Ambient Temperature - 95°C |
| Voltage | Three - phase 380V |
| Number of Tanks | 4 or Customized |
| Ultrasonic Cleaning Frequency | 28/40/68/80/132KHz... |
| Inner Tank Dimensions | Customized as Required |
| Type | Integrated |
| Heating Power | Customized as Required |
| Number of Transducers | Customized as Required |
| Time Control Range | 0 - 99 Minutes |
| Place of Origin | Shenzhen, China |
1.Quality Control:
We are using hight quality material like Simens, Schneider
electrical parts. Our machine is designed by experienced engineer
who have designed machines for Foxconn, Cummins and BOSCH. The
workers also have years experience building automatical cleaning
line. Our QC system is covering from raw material to finishing
machine.
2.Professional Experience:
We have worked with many famous brand company and goverment project
like Foxconn, Cummins and railway department. We also have years
international experience with installating and testing machine in
other country. We will provide full service for our customer after
purchasing.
3.Payment Term:
We can accept flexible payment term due to different situation like
10~20% payment after installation and test service.
We also need some support from you in some case.
4.After Sales Service:
We will provide installation and test service for automatical
cleaning line at your facility until cleaning is working properly.
And we offer 5 years with 24/7 work during warranty period.
5.Non-standard customization
We are the source of cleaning machine manufacturers, can help
customers customize various types of non-standard cleaning machine,
fast delivery.
Application Field:
| Industry | The cleaning products and materials | Clear dirt |
| Semi-conductor | Integrated circuit, power tube, silicon wafer, diode, lead frame,
capillary, tray, etc. | Hards, etching oil, polishing wax, dust particles, etc, |
| Electrical& electronic machine | Tube parts, cathode ray tube, printed circuit board, quartz parts,
electronic components, telephone switching equipment, speaker
components, power meter, LCD glass, core iron parts, computer
floppy disk, video parts, head, photo die mask, etc | Fingerprint, powder, cutting oil, stamping oil, iron filings,
polishing materials, walnut powder, polishing wax, resin, dust,
etc. |
| Precision machine | Bearing, sewing machine parts, typewriter, textile, machine,
optical-mechanical device, gas valve, watches cameras, metal filter | Machine cutting oil, iron filings, polishing powder, fingerprint,
oil, grease, dirt, etc |
| Optical device | Glasses, lens, prism, optical lens, filter lens, glass device,
film, optical fiber, etc. | Plastic resin, paraffin, fingerprinting, etc. |
| Hardware& machinery parts | Bearing, gear, ball, metal shaft parts, tools, adjustable valve and
cylinder parts, burner, compressors, hydraulic press, gun and
ultracentrifuge, city water faucet, etc | Cutting oil, iron filings, grease, polishing powder, fingerprint
and so on. |
| Medical instrument | Medical instrument, denture, etc. | Iron filings., Polishing powder, oil, stamping oil, dirt, etc. |
| Electroplate | Galvanized parts, mold, stamping parts, etc. | Polishing scrap iron, oil, black iron shell, rust, oxidation shell,
scrap iron, polishing powder, stamping oil, dirt, etc. |
| Car parts | Piston ring, carburetor, flow meter housing, compressor shell,
electrical components, etc. | Iron filings, polishing powder, oil stamping oil, dirt, etc. |
| Chemical fiber | Chemical or artificial fiber nozzle filter protector chemical fiber
texture, etc. | The Chemical colloid, glue, and other solid material. dust. Etc. |
