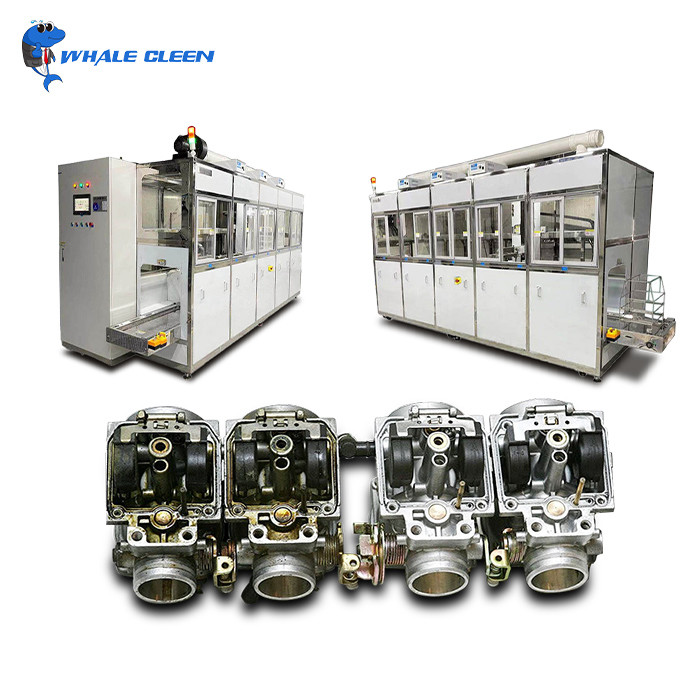

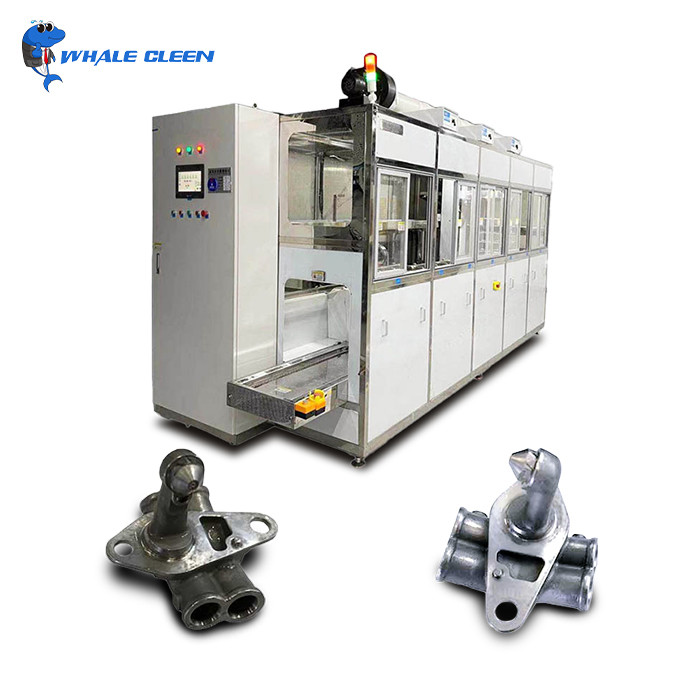

Custom 5 Tanks Fully Automatic Industrial Ultrasonic Cleaning
Machine For Hardware accessories
1. Product Features and Advantages
(1)Cutting-Edge Cleaning Technology
Utilizes high-frequency ultrasonic waves (20kHz–40kHz) to generate
powerful cavitation effects, penetrating even the most intricate
crevices and removing stubborn contaminants (oil, grease,
particles, flux residues) with unmatched efficiency.
(2)Fully Automated Operation
Equipped with a PLC control system and touchscreen interface for
seamless workflow management: pre-cleaning, ultrasonic cleaning,
rinsing, drying, and material handling are all automated, reducing
labor costs and minimizing human error.
(3) Superior Cleaning Consistency
Uniform ultrasonic wave distribution ensures consistent cleaning
results across all workpieces, ideal for high-precision industries
such as automotive, aerospace, electronics, and medical device
manufacturing.
(4) Energy & Cost Efficiency
Low power consumption combined with durable stainless steel
construction (304/316L) ensures long service life and minimal
maintenance. Reduces water/chemical usage through intelligent
recycling systems.
(5) Safety & Environmental Compliance
Designed with leak-proof seals, overload protection, and
eco-friendly cleaning options (biodegradable detergents), meeting
international standards for industrial safety and sustainability.
(6) Customizable Non-Standard Solutions
Tailored to your unique needs: adjustable tank sizes, multi-stage
cleaning processes, specialized fixtures, and optional upgrades
(heated cleaning, filtration systems, nitrogen drying) to address
diverse industrial applications.
２.Working Principle
The cleaning process relies on ultrasonic cavitation:
1. Ultrasonic Wave Generation: High-frequency sound waves emitted by transducers create millions
of tiny cavitation bubbles in the cleaning solution.
2. Cavitation Effect: Bubbles implode upon contact with surfaces, generating micro-jets
that dislodge and dissolve contaminants without physical abrasion.
3. Mechanical Agitation: Combined with mechanical movements (conveyor belts, rotation
racks) and temperature-controlled cleaning fluids, this process
ensures deep-reaching, gentle yet thorough cleaning.
4. Automated Workflow: The PLC system coordinates each stage—from loading to drying—for
optimized efficiency, ensuring workpieces are cleaned, dried, and
ready for the next production step.
3. Equipment Configuration:
First and second tanks: Ultrasonic cleaning + filtering circulation
Function: Filter out floating oil, impurities, and dust during the
cleaning process, saving the cleaning agent.
Third tank: Bubbling rinsing
Function: After cleaning in the second tank, the third tank
performs bubbling rinsing again, making the workpieces cleaner.
Fourth tank: Ultrasonic rinsing
Function: After cleaning in the third tank, conduct a rinsing in
this rinsing tank, achieving better cleanliness.
Fifth tank: Hot - air drying tank
Function: The fifth tank uses air - blowing for drying, enabling
the cleaned objects to dry rapidly.
4.product in details
| Item | Details |
| Brand | Whale Clean |
| Purpose | Hardware Cleaning |
| Working Mode | Fully Automatic PLC Program Control |
| Weight | Customized as Required |
| Overall Dimensions | Customized as Required |
| Temperature Control Range | 20 - 95°C |
| Voltage | Three - phase 380V |
| Number of Tanks | 5 tanks or Customized |
| Ultrasonic Cleaning Frequency | 28/40/68/80/132KHz or customized |
| Inner Tank Dimensions | Customized as Required |
| Type | Integrated |
| Heating Power | Customized as Required |
| Number of Transducers | Customized as Required |
| Time Control Range | 0 - 99 Minutes |
| Place of Origin | Shenzhen, China |
1.Quality Control:
We are using hight quality material like Simens, Schneider
electrical parts. Our machine is designed by experienced engineer
who have designed machines for Foxconn, Cummins and BOSCH. The
workers also have years experience building automatical cleaning
line. Our QC system is covering from raw material to finishing
machine.
2.Professional Experience:
We have worked with many famous brand company and goverment project
like Foxconn, Cummins and railway department. We also have years
international experience with installating and testing machine in
other country. We will provide full service for our customer after
purchasing.
3.Payment Term:
We can accept flexible payment term due to different situation like
10~20% payment after installation and test service.
We also need some support from you in some case.
4.After Sales Service:
We will provide installation and test service for automatical
cleaning line at your facility until cleaning is working properly.
And we offer 5 years with 24/7 work during warranty period.
5.Non-standard customization
We are the source of cleaning machine manufacturers, can help
customers customize various types of non-standard cleaning machine,
fast delivery.
Application Field:
| Industry | The cleaning products and materials | Clear dirt |
| Semi-conductor | Integrated circuit, power tube, silicon wafer, diode, lead frame,
capillary, tray, etc. | Hards, etching oil, polishing wax, dust particles, etc, |
| Electrical& electronic machine | Tube parts, cathode ray tube, printed circuit board, quartz parts,
electronic components, telephone switching equipment, speaker
components, power meter, LCD glass, core iron parts, computer
floppy disk, video parts, head, photo die mask, etc | Fingerprint, powder, cutting oil, stamping oil, iron filings,
polishing materials, walnut powder, polishing wax, resin, dust,
etc. |
| Precision machine | Bearing, sewing machine parts, typewriter, textile, machine,
optical-mechanical device, gas valve, watches cameras, metal filter | Machine cutting oil, iron filings, polishing powder, fingerprint,
oil, grease, dirt, etc |
| Optical device | Glasses, lens, prism, optical lens, filter lens, glass device,
film, optical fiber, etc. | Plastic resin, paraffin, fingerprinting, etc. |
| Hardware& machinery parts | Bearing, gear, ball, metal shaft parts, tools, adjustable valve and
cylinder parts, burner, compressors, hydraulic press, gun and
ultracentrifuge, city water faucet, etc | Cutting oil, iron filings, grease, polishing powder, fingerprint
and so on. |
| Medical instrument | Medical instrument, denture, etc. | Iron filings., Polishing powder, oil, stamping oil, dirt, etc. |
| Electroplate | Galvanized parts, mold, stamping parts, etc. | Polishing scrap iron, oil, black iron shell, rust, oxidation shell,
scrap iron, polishing powder, stamping oil, dirt, etc. |
| Car parts | Piston ring, carburetor, flow meter housing, compressor shell,
electrical components, etc. | Iron filings, polishing powder, oil stamping oil, dirt, etc. |
| Chemical fiber | Chemical or artificial fiber nozzle filter protector chemical fiber
texture, etc. | The Chemical colloid, glue, and other solid material. dust. Etc. |
