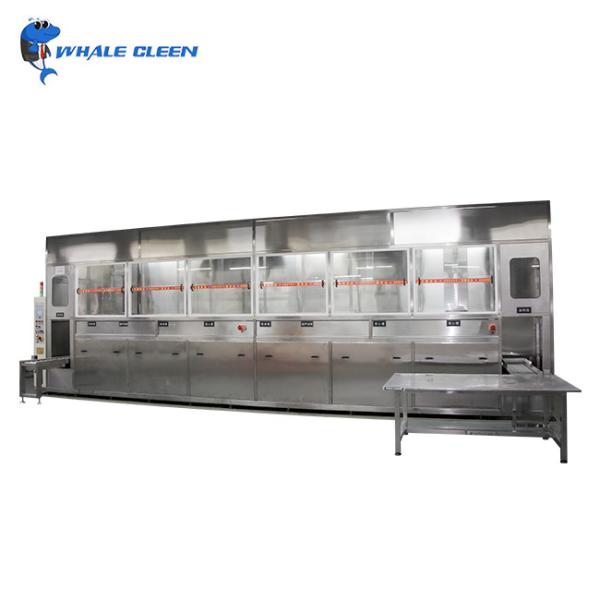

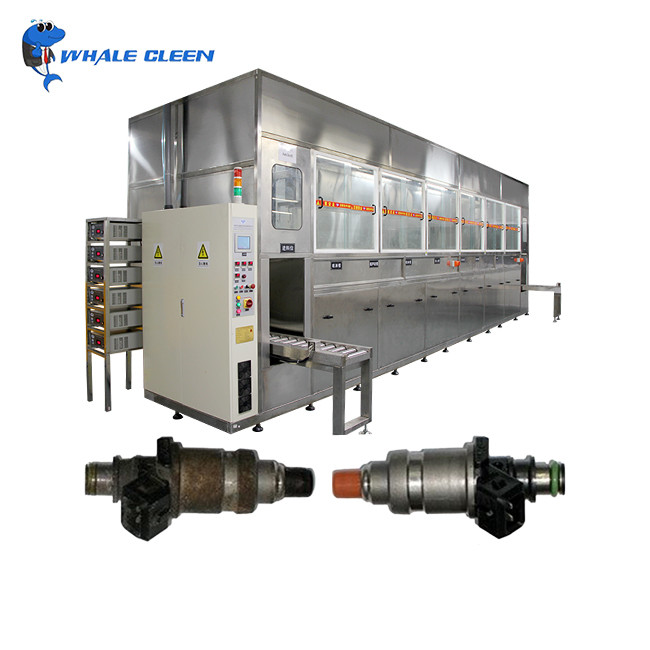

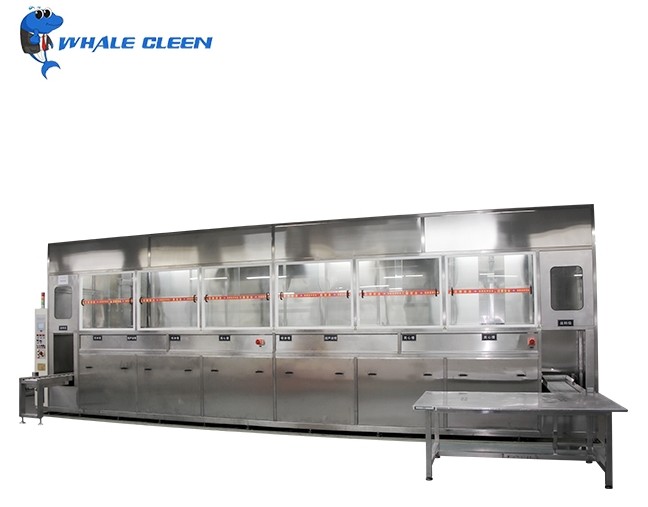

BlueWhaleClean Digital Automatical Multi-stage Industrial
Ultrasonic Cleaner
Product Advantages
1. High-quality stainless steel tank: SUS304 (316 optional)
stainless steel material, with anti-corrosion, anti-rust,
wear-resistant characteristics, longer service life.
2. Large screen LED design: touch screen display, one key
intelligent operation, simple and easy to learn, the whole process
can be easily operated by one person.
3, stainless steel trolley loading and unloading system, automatic
basket system, saving time and manpower when cleaning.
4. Adopt step by step flow design: improve cleaning effect and save
cost.
5, the cleaning temperature can be adjusted, the cleaning time can
be adjusted, saving water and electricity.
6. Professional customized services, according to customer
procurement needs, we can provide one-stop cleaning machine
customization and 7*24 hours after-sales service.
1.Quality Control:
We are using hight quality material like Simens, Schneider
electrical parts. Our machine is designed by experienced engineer
who have designed machines for Foxconn, Cummins and BOSCH. The
workers also have years experience building automatical cleaning
line. Our QC system is covering from raw material to finishing
machine.
2.Professional Experience:
We have worked with many famous brand company and goverment project
like Foxconn, Cummins and railway department. We also have years
international experience with installating and testing machine in
other country. We will provide full service for our customer after
purchasing.
3.Payment Term:
We can accept flexible payment term due to different situation like
10~20% payment after installation and test service.
We also need some support from you in some case.
4.After Sales Service:
We will provide installation and test service for automatical
cleaning line at your facility until cleaning is working properly.
And we offer 5 years with 24/7 work during warranty period.
Automated Gantry System:
Rack and pinion style. Capable of different recipe programs and
capable of skipping stations. Load and unload stations equipped
with conveyor feed in-axes with machine.
Fast moving automation platform available, and includes features
not included with any competitive equipment.
Smallest most compact automation platform available. System arrives
FULLY PROGRAMMED with turn-key operation. No programming other than
recipe data will be required. System also includes the following
features:
· Single or Dual position load and unload platform
· 3-color Light tower to indicate operating condition of system
from a distance
· Automation Direct touch-screen (AB optional)
· Automation Direct PLC control system (AB optional)
· 9 processing baskets
· Random Recipe Processor: Operators can add different parts with
different recipes at any time. Other systems must process all
baskets in queue with the same recipe. The system allows any basket
with any recipe to be added at any time.
· 100 pound load capacity
· Capabilities of loading and unloading inline at both ends with
customers load/unload station.
· Conveyor Belt access points / PLC Hand shake
Cleaning process
Technical parameter
| Specifications Of Customized 8 Tanks Cleaning Line LanJ-80666AD |
| Model | LanJ-80666AD |
| Each Tank capacity | 360L |
| Each Tank size | 100*600*600mm |
| Tank material | SUS316 or 304(optional) |
| Ultrasonic power | 33.3KW |
| Heating power | 40KW |
| Timer | 1-99h adjustable |
| Temperature | 0-80c adjustable |
| Frequency | 28/40khz |
| Control | outside generator box |
| Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
| Power Supply | 3phases |
| Warranty | 5 years with 24/7 aftersale service |
| Packing | Special packing design |
Application field: Automotive, electronics, home appliance, mobile phone, optics,
railway, aerospace, electroplate and etc.
Suitable cleaning item:
Automotive parts, electronic parts, black metal, nonferrous metals,
Mobile panel, TV LCD/LED, Digital projection, lens, Locomotive parts, airplane parts and etc.
Contaminant can be removed:
oil, grease, scale, rust, oxide skin, finger print, high temperature carbon, polishing paste, particles, and etc.
Production Pictures:
Please note: All photos on this site are real. Due to changes in
lighting, shooting Angle, and display resolution, the image you see
may have some degree of chromatic aberration. GongDong Blue Whale
Clean is a professional Ultrasonic Cleaner manufacturer with 20
years of history in GongDong,China. Our products are updated and
upgraded every year.
If you are interested in this product and want to know more
details, please contact us on line or E-mail to us, we will have
professional salesman team service for you. Thank you for your
time.
