    Six Tank Industrial Ultrasonic Cleaner , Hydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine

    Ask Lasest Price
    Brand Name : Whale cleen
    Model Number : LanJ-6060TQ
    Certification : CE, Rohs
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000 units per month
    Delivery Time : Depend on quantity
    • Product Details
    • Company Profile

    Six Tank Industrial Ultrasonic Cleaner , Hydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine

    Six Tank Industrial Ultrasonic Cleaner , Hydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine

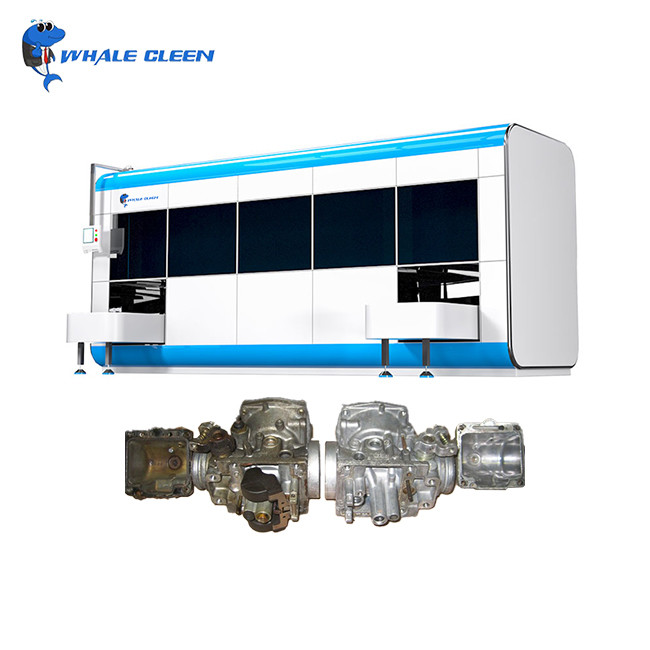

    Blue whale Six tank hydrocarbon vacuum automatic ultrasonic cleaning machine

    Six Tank Industrial Ultrasonic Cleaner , Hydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine

    Hydrocarbon vacuum automatic ultrasonic cleaning machine Advantages:

    [1] Good cleaning effect:

    the cleaning power of metal processing oil is strong, according to the principle of similarity and compatibility, hydrocarbon cleaning agent is better than halogenated hydrocarbon and water based cleaning agent; Using vacuum cleaning and steam bath, not only the surface of the cleaned object is clean, but also the dryness is good, especially used to solve the batch oil removal cleaning of various kinds of stamping, drawing and other copper and aluminum processing parts, to solve the large copper and aluminum processing parts, and the workpiece has a slot, blind hole, deep hole parts cleaning and drying problems.

    [2] Good material compatibility:

    hydrocarbon cleaning agent does not contain moisture and chlorine, sulfur and other corrosive substances, will not cause corrosion and oxidation of various metal materials; No dissolution, swelling and embrittlement effect on most plastics and rubber; It has anti-rust function on metal iron parts.

    [3] Extremely low toxicity:

    After toxicological tests, the suction and release toxicity, oral toxicity and skin contact toxicity of hydrocarbon cleaning agents are ultra-low toxicity, and they are not carcinogens, and can be completely volatilized at room temperature and heating state, and it is safer for cleaning operators to use without residue.

    [4] Low cost of use:

    low power consumption: the total power is about 40KW, the average power consumption is about 10KW per hour, which saves 40% compared with traditional water-based cleaning equipment, and the equipment is equipped with a distillation recovery device, the cleaning agent is used unlimited times, the recovery rate is as high as 99%, and the average loss is 0.8L/H.

    [5] Safety:

    hydrocarbon solvents are selected with high flash point evaporation of small flame retardant solvents, from cleaning to drying is carried out in a vacuum sealed chamber, isolated oxygen and ignition point, all components are explosion-proof design and equipped with automatic fire extinguishing device, equipment with multi-layer safety protection do not have to worry about fire.

    [6] Environmental protection:

    hydrocarbon cleaning agent can be automatically degraded, cleaning waste liquid can be burned in coal-fired or oil-fired boilers, incineration products are mainly CO2 and water, no pollution to air. There is no chlorine in the hydrocarbon cleaning agent, and the destruction coefficient of ozone is zero.


    2. Product Features:


    1). Vacuum, high temperature ultrasonic cleaning machine, cleaning effect is good.
    2). The first tank and the second tank can be equipped with swinging, throwing, rolling and other equipment.
    3). Equipped with a distillation recovery machine, solvent circulation distillation, to achieve zero discharge of cleaning fluid.
    4). Completely closed cavity structure, low solvent loss.
    5). Fully automated, fully monitored.
    6). This product support non-standard custom, can provide design drawings and cleaning program.


    Six Tank Industrial Ultrasonic Cleaner , Hydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine


    1.Quality Control:

    We are using hight quality material like Simens, Schneider electrical parts. Our machine is designed by experienced engineer who have designed machines for Foxconn, Cummins and BOSCH. The workers also have years experience building automatical cleaning line. Our QC system is covering from raw material to finishing machine.

    2.Professional Experience:

    We have worked with many famous brand company and goverment project like Foxconn, Cummins and railway department. We also have 20 years international experience with installating and testing machine in other country. We will provide full service for our customer after purchasing.

    3.Payment Term:

    We can accept flexible payment term due to different situation like 10~20% payment after installation and test service.

    We also need some support from you in some case.

    4.After Sales Service:

    We will provide installation and test service for automatical cleaning line at your facility until cleaning is working properly.

    And we offer 5 years with 24/7 work during warranty period.

    5.Professional customization

    The company can professionally customize various types of cleaning machines to provide customers with cost-effective cleaning solutions to meet your one-stop procurement services.


    Six Tank Industrial Ultrasonic Cleaner , Hydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine

    Cleaning process:

    [1] Water-containing process: dehydration - rough washing - vacuum fine washing - vacuum bath - vacuum drying

    [2] Oil-containing process: rough washing - vacuum fine washing - vacuum bath - vacuum drying


    3.Technical parameter


    Six tank hydrocarbon vacuum automatic ultrasonic cleaning machine
    Inner slot size:L600*W600*H500MM (effective size)
    Inner slot material:SUS304 thickness:10.0MM
    External plate qualitySUS304 thickness:1.0MM
    The first vacuum ultrasonic cleaning tank:ultrasonic power: 3KW
    installation of vibration plate
    ultrasonic frequency: 28KHz
    one ultrasonic generator
    adjustable time, adjustable temperature
    installation of throwing system
    heating power 12KW
    installation of filter circulation system: 1 set
    The second vacuum ultrasonic cleaning tank:ultrasonic power: 5.4KW
    installed vibration plate
    ultrasonic frequency: 28KHz
    two ultrasonic generators
    heating power 12KW
    adjustable time, adjustable temperature
    install a filter circulation system:1set
    install the throwing system
    Install a conductivity meter
    The third vacuum ultrasonic cleaning tank:ultrasonic power: 5.4KW
    installed vibration plate
    ultrasonic frequency: 28KHz
    two ultrasonic generators
    heating power: 12KW
    adjustable time, adjustable temperature
    install a filter circulation system:1set
    install the throwing system
    Install a conductivity meter
    The fourth vacuum ultrasonic cleaning tank:ultrasonic power: 3KW
    installed vibration plate
    ultrasonic frequency: 28KHz
    one ultrasonic generator
    heating power: 12KW
    adjustable time, adjustable temperature
    install a filter circulation system:1set
    install the throwing system
    Install a conductivity meter
    The fifth tank steam bath:steam bath, heating power 27KW, with filter circulation system.
    The sixth tank vacuum drying:heating power: 15KW
    Machine:
    equipped with 8 cleaning baskets, using conveyor belt loading and unloading.

    4. Application fields:

    IndustryThe cleaning products and materialsclear dirt
    Semi-conductorIntegrated circuit, power tube, silicon wafer, diode, lead frame, capillary, tray, etc.Hards, etching oil, polishing wax, dust particles, etc,
    Electrical & electronic machineTube parts, cathode ray tube, printed circuit board, quartz parts, electronic components, telephone switching equipment, speaker components, power meter, LCD glass, core iron parts, computer floppy disk, video parts, head, photo die mask, etc.Fingerprint, powder, cutting oil, stamping oil, iron filings, polishing materials, walnut powder, polishing wax, resin, dust, etc.
    Precision machineBearing, sewing machine parts, typewriter, textile, machine, optical-mechanical device, gas valve, watches cameras, metal filterMachine cutting oil, iron filings, polishing powder, fingerprint, oil, grease, dirt, etc.
    Optical deviceGlasses, lens, prism, optical lens, filter lens, glass device, film, optical fiber, etc.Plastic resin, paraffin, fingerprinting, etc.
    Hardware & machinery partsBearing, gear, ball, metal shaft parts, tools, adjustable valve and cylinder parts, burner, compressors, hydraulic press, gun and ultracentrifuge, city water faucet, etcCutting oil, iron filings, grease, polishing powder, fingerprint and so on.
    Medical instrumentMedical instrument, denture, etc.Iron filings., Polishing powder, oil, stamping oil, dirt, etc.
    ElectroplateGalvanized parts, mold, stamping parts, etc.Polishing scrap iron, oil, black iron shell, rust, oxidation shell, scrap iron, polishing powder, stamping oil, dirt, etc.
    Car partsPiston ring, carburetor, flow meter housing, compressor shell, electrical components, etc.Iron filings, polishing powder, oil stamping oil, dirt, etc.
    Chemical fiberChemical or artificial fiber nozzle filter protector chemical fiber texture, etc.The Chemical colloid, glue, and other solid material. dust. Etc.

    Cleaning Effect:


    Six Tank Industrial Ultrasonic Cleaner , Hydrocarbon Vacuum Automatic Ultrasonic Cleaning MachineSix Tank Industrial Ultrasonic Cleaner , Hydrocarbon Vacuum Automatic Ultrasonic Cleaning Machine


    Honors and certificates

    Non-Standard Custom Industrial Ultrasonic Cleaner Fully Automatic Untrasonic Parts Machine 8

    Please note:

    All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong Blue Whale Clean is a professional Ultrasonic Cleaner manufacturer with 20 years of history in GongDong,China. Our products are updated and upgraded every year.
    If you are interested in this product and want to know more details, please contact us on line or E-mail to us, we will have professional salesman team service for you. Thank you for your time.
